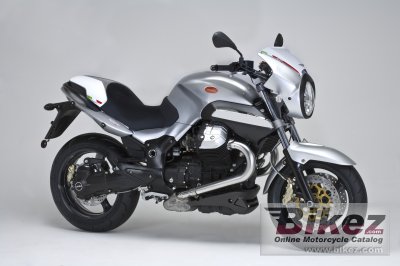

2010 Moto Guzzi 1200 Sport 4V Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Moto Guzzi 1200 Sport 4V.

Basic Specs

Year2010
MakeMoto Guzzi
ModelMoto Guzzi 1200 Sport 4V
Cost

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe.
Ignition
ExhaustEuro 3
LubricationSplash
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDouble disk, dry
Driveline

Performance

Horespower103.26 HP (75.4 kW)
Torque105.00 Nm (10.7 kgf-m or 77.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeTubular cradle, high tensile steel
Rake25.0°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with Ø 45 mm spring preload and rebound damping adjustable.
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,160 mm (45.7 inches)
Total Length2,195 mm (86.4 inches)
Total Width
Ground Clearance185 mm (7.3 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight240.0 kg (529.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi 1200 Sport 4V. This Naked bike model is powered by a V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe. allowing this machine to produce its 103.26 HP (75.4 kW) horsepower and 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) torque. According to our records engine heat of the Moto Guzzi 1200 Sport 4V is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular cradle, high tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Moto Guzzi 1200 Sport 4V was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
