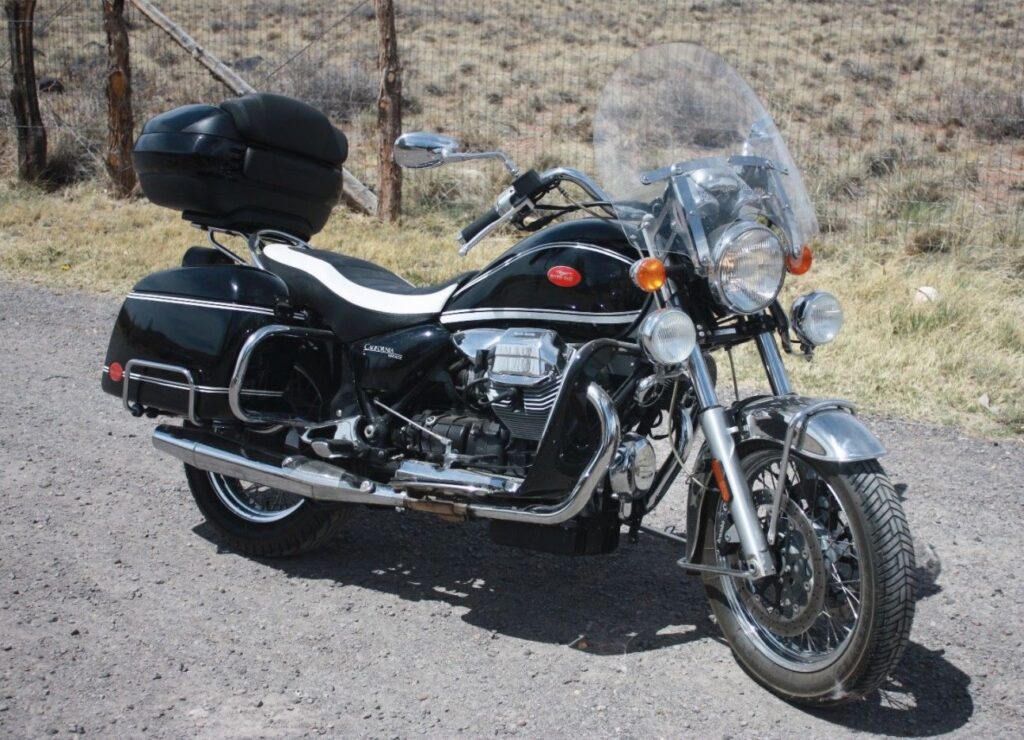

2010 Moto Guzzi California Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Moto Guzzi California Classic.

Basic Specs

Year2010
MakeMoto Guzzi
ModelMoto Guzzi California Classic
Cost

Engine

Displacement1064.00 ccm (64.93 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke92.0 x 80.0 mm (3.6 x 3.1 inches)
Valves/Cylinder2
FuelingInjection. Magneti Marelli IAW alfa-n system Multipoint phased sequential injection;
IgnitionMagneti Marelli IAW 15RC electronic digital ignition with inductive spark
ExhaustEuro 3. Steel, 2 tubes connected to an expansion room, that is connected to 2 steel mufflers. Catalyzed with Lambda probe.
LubricationForced lobes, with geared pump and pressure regulator
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchSingle disc, dry, with mechanical control
Driveline

Performance

Horespower73.76 HP (53.8 kW)
Torque88.00 Nm (9.0 kgf-m or 64.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame Type
Rake29.0°
Trail116 mm (4.6 inches)
Front SuspensionMarzocchi hydraulic telescopic fork, 45 mm
Front Travel140 mm (5.5 inches)
Rear SuspensionSwing arm with 2 hydraulic shock absorbers
Rear Travel96 mm (3.8 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,380 mm (93.7 inches)
Total Width815 mm (32.1 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,560 mm (61.4 inches)
Dry Weight256.0 kg (564.4 pounds)
Wet Weight276.0 kg (608.5 pounds)

Wheels & Brakes

Front Tire/Tyre110/90-VB18
Rear Tire/Tyre150/70-VB17
Front BrakesDouble disc. Two Brembo Oro series stainless steel flooating discs, with 4 piston calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Brembo stainless steel fixed disc, with 2 piston calipers
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi California Classic. This Custom / cruiser model is powered by a V2, four-stroke engine with 1064.00 ccm (64.93 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential injection; allowing this machine to produce its 73.76 HP (53.8 kW) horsepower and 88.00 Nm (9.0 kgf-m or 64.9 ft.lbs) torque. According to our records engine heat of the Moto Guzzi California Classic is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/90-VB18 and the rear is 150/70-VB17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Two Brembo Oro series stainless steel flooating discs, with 4 piston calipers front brakes and Single disc. Brembo stainless steel fixed disc, with 2 piston calipers rear brakes. The Moto Guzzi California Classic was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
