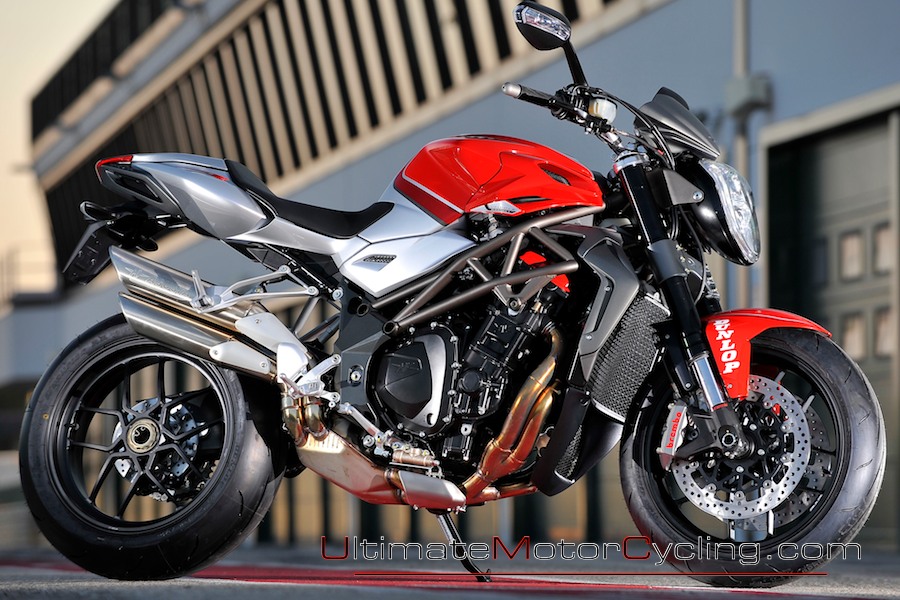

2010 MV Agusta Brutale 1090RR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 MV Agusta Brutale 1090RR.

Basic Specs

Year2010
MakeMV Agusta
ModelMV Agusta Brutale 1090RR
CostUS$ 18000. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1078.00 ccm (65.78 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke79.0 x 55.0 mm (3.1 x 2.2 inches)
Valves/Cylinder4
FuelingInjection
IgnitionMagneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed “Multipoint” electronic injection
Exhaust
LubricationDouble rotor pump
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchSlipper clutch,
Driveline

Performance

Horespower144.20 HP (105.3 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed265.0 km/h (164.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeCrMo Steel tubular trellis (TIG welded)
Rake
Trail104 mm (4.1 inches)
Front SuspensionUpside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment
Rear Travel120 mm (4.7 inches)
Seat
Seat Height
Alt. Seat Height
Total Height830 mm (32.7 inches)
Total Length2,093 mm (82.4 inches)
Total Width760 mm (29.9 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,438 mm (56.6 inches)
Dry Weight190.0 kg (418.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Bremo, 4-piston caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo, 4-piston caliper
Rear Brake Diameter210 mm (8.3 inches)
Wheels

Comments

It appears you're interested in specifications for the MV Agusta Brutale 1090RR. This Naked bike model is powered by a In-line four, four-stroke engine with 1078.00 ccm (65.78 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 144.20 HP (105.3 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the MV Agusta Brutale 1090RR is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, CrMo Steel tubular trellis (TIG welded). We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Bremo, 4-piston caliper front brakes and Single disc. Bremo, 4-piston caliper rear brakes. The MV Agusta Brutale 1090RR was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A power reduced version exits.
