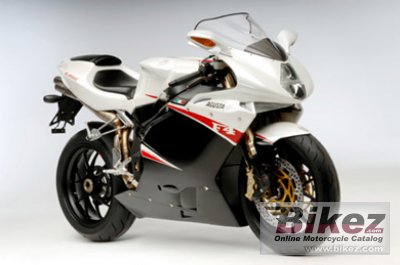

2010 MV Agusta F4 R312 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 MV Agusta F4 R312.

Basic Specs

Year2010
MakeMV Agusta
ModelMV Agusta F4 R312
TypeSport
CostUS$ 24995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM13000
Compression13.1:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection
Ignition
ExhaustEuro 3
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower183.00 HP (133.6 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed302.0 km/h (187.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.00 litres (5.55 gallons)
Emissions

Chassis

Frame Type
Rake
Trail104 mm (4.1 inches)
Front SuspensionMarzocchi USD Ø50 mm R.A.C. (Road Advanced Component) forks
Front Travel129 mm (5.1 inches)
Rear SuspensionAdjustable monoshock with high and low speed compression settings
Rear Travel120 mm (4.7 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,007 mm (79.0 inches)
Total Width685 mm (27.0 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,408 mm (55.4 inches)
Dry Weight192.0 kg (423.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Bremo
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter210 mm (8.3 inches)
Wheels

Comments

It appears you're interested in specifications for the MV Agusta F4 R312. This Sport model is powered by a In-line four, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 13.1:1 compression. Fueling is metered via Injection. “Weber Marelli” 5SM ignition - injection integrated system; induction discharge electronic ignition, “Multipoint” sequential timed electronic injection allowing this machine to produce its 183.00 HP (133.6 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the MV Agusta F4 R312 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Bremo front brakes and Single disc. Bremo rear brakes. The MV Agusta F4 R312 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
