These are the known mechanical and performance specifications for your 2010 Piaggio MP3 500.

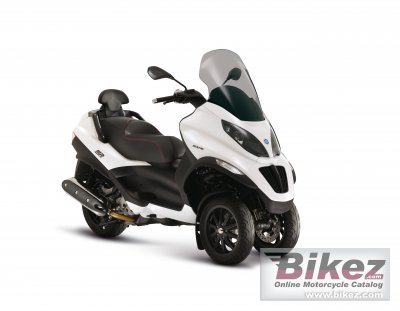

ModelPiaggio MP3 500
CostUS$ 8999. Prices depend on country, taxes, accessories, etc.
Displacement492.70 ccm (30.06 cubic inches)
DetailsSingle cylinder, four-stroke
Torque42.20 Nm (4.3 kgf-m or 31.1 ft.lbs)
Fuel Economy & Polution
Front SuspensionParallelogram, cantilever
Front Travel85 mm (3.3 inches)
Rear SuspensionTwin hydraulic shock absorbers with pre-load adjuster
Rear Travel110 mm (4.3 inches)
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Length2,160 mm (85.0 inches)
Total Width775 mm (30.5 inches)
Wheelbase1,550 mm (61.0 inches)
Wet Weight244.0 kg (537.9 pounds)
Wheels & Brakes
Front BrakesDouble disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter280 mm (11.0 inches)
It appears you're interested in specifications for the Piaggio MP3 500. This Scooter model is powered by a Single cylinder, four-stroke engine with 492.70 ccm (30.06 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 42.20 Nm (4.3 kgf-m or 31.1 ft.lbs) torque. According to our records engine heat of the Piaggio MP3 500 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 140/70-14 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Piaggio MP3 500 was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
Two front wheels.
Two front wheels.
