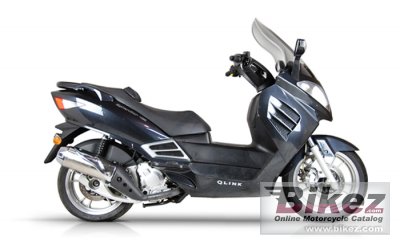

These are the known mechanical and performance specifications for your 2010 Qlink Splendor 400.
Basic Specs
Year2010
MakeQlink
ModelQlink Splendor 400
TypeScooter
CostUS$ 4650. Prices depend on country, taxes, accessories, etc.
Engine
Displacement393.00 ccm (23.98 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke86.0 x 66.0 mm (3.4 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. Kinzo
IgnitionCDI
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower26.80 HP (19.6 kW)
Torque28.00 Nm (2.9 kgf-m or 20.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.62 litres (3.60 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionHydraulic
Front Travel
Rear SuspensionHydraulic shocks
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,240 mm (88.2 inches)
Total Width
Ground Clearance124 mm (4.9 inches)
Wheelbase1,565 mm (61.6 inches)
Dry Weight191.9 kg (423.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-16
Rear Tire/Tyre140/60-16
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
