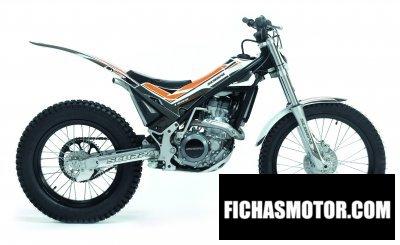

2010 Scorpa SY-250FR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Scorpa SY-250FR.

Basic Specs

Year2010
MakeScorpa
ModelScorpa SY-250FR
TypeTrial
Cost

Engine

Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.6:1
Bore/Stroke77.0 x 53.6 mm (3.0 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. VHST 26 mm DELLORTO, with resumption pump
IgnitionComputer-controlled Digital Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multidisc, with hydraulic command
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions

Chassis

Frame TypePerimetric, mixed: 15CDV6 Steel pipes and 6082 forged Aluminium decks
Rake
Trail
Front SuspensionMARZOCCHI Aluminium 40 mm hydraulic fork, adjustable compression and rebond damping, 177 mm axle travel
Front Travel
Rear SuspensionSACHS adjustable hydraulic single damper, 165 mm wheel travel
Rear Travel
Seat
Seat Height665 mm (26.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length2,023 mm (79.6 inches)
Total Width840 mm (33.1 inches)
Ground Clearance315 mm (12.4 inches)
Wheelbase1,330 mm (52.4 inches)
Dry Weight75.0 kg (165.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre1.60-21
Rear Tire/Tyre2.15-18
Front BrakesSingle disc. Wave
Front Brake Diameter182 mm (7.2 inches)
Rear BrakesSingle disc. Wave
Rear Brake Diameter150 mm (5.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Scorpa SY-250FR. This Trial model is powered by a Single cylinder, four-stroke engine with 249.00 ccm (15.19 cubic inches) of actual displacement before 10.6:1 compression. Fueling is metered via Carburettor. VHST 26 mm DELLORTO, with resumption pump allowing this machine to produce its horsepower and torque. According to our records engine heat of the Scorpa SY-250FR is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 1.60-21 and the rear is 2.15-18 . The entire package is supported by the frame, Perimetric, mixed: 15CDV6 Steel pipes and 6082 forged Aluminium decks. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Wave front brakes and Single disc. Wave rear brakes. The Scorpa SY-250FR was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
