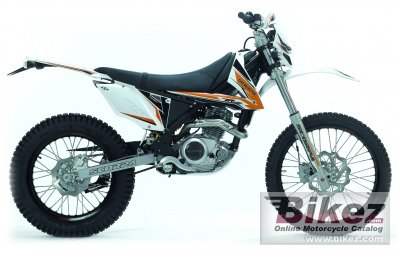

2010 Scorpa T-Ride 124-4T Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Scorpa T-Ride 124-4T.

Basic Specs

Year2010
MakeScorpa
ModelScorpa T-Ride 124-4T
Cost

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni 20 mm
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multidisc
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeCrMo
Rake
Trail
Front SuspensionPaioli fork
Front Travel
Rear SuspensionOlle shoch absorber
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,093 mm (82.4 inches)
Total Width
Ground Clearance325 mm (12.8 inches)
Wheelbase1,404 mm (55.3 inches)
Dry Weight99.0 kg (218.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-21
Rear Tire/Tyre4.00-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Scorpa T-Ride 124-4T. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Mikuni 20 mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the Scorpa T-Ride 124-4T is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-21 and the rear is 4.00-18 . The entire package is supported by the frame, CrMo. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Scorpa T-Ride 124-4T was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
