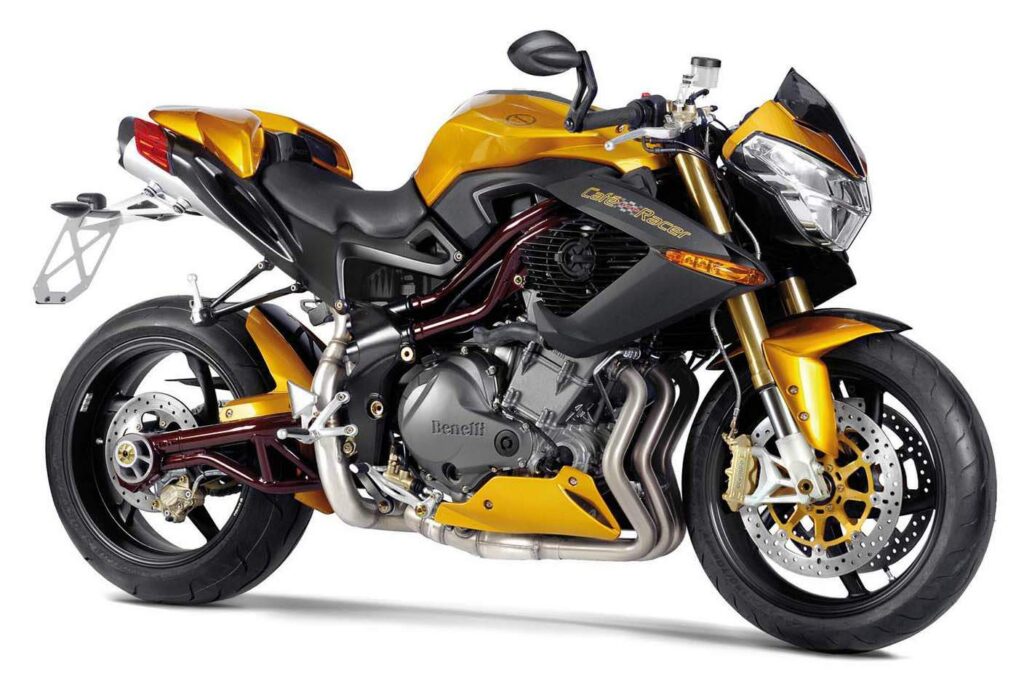

2011 Benelli TNT 1130 Cafe Racer Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Benelli TNT 1130 Cafe Racer.

Basic Specs

Year2011
MakeBenelli
ModelBenelli TNT 1130 Cafe Racer
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.9:1
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital - inductive type via electronic engine management
ExhaustWith catalytic converter and oxigen sensor
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet clucth 11 discs
Driveline

Performance

Horespower135.44 HP (98.9 kW)
Torque110.00 Nm (11.2 kgf-m or 81.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeDecomposable, front ASD steel trellis, rear alluminium alloy casting
Rake25.0°
Trail95 mm (3.7 inches)
Front Suspension
Front Travel1,000 mm (39.4 inches)
Rear SuspensionASD steel tube trellis swingarm, preload adjuster
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,100 mm (82.7 inches)
Total Width790 mm (31.1 inches)
Ground Clearance
Wheelbase1,443 mm (56.8 inches)
Dry Weight208.0 kg (458.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsDie-cast aluminium alloy

Comments

It appears you're interested in specifications for the Benelli TNT 1130 Cafe Racer. This Naked bike model is powered by a In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before 11.9:1 compression. Fueling is metered via Injection allowing this machine to produce its 135.44 HP (98.9 kW) horsepower and 110.00 Nm (11.2 kgf-m or 81.1 ft.lbs) torque. According to our records engine heat of the Benelli TNT 1130 Cafe Racer is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Decomposable, front ASD steel trellis, rear alluminium alloy casting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Benelli TNT 1130 Cafe Racer was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
