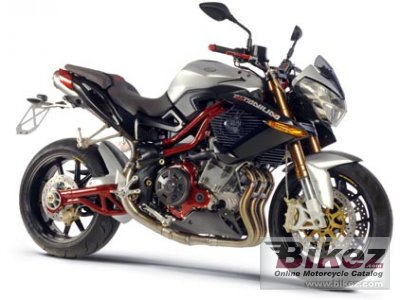

2011 Benelli TNT 1130 Titanium Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Benelli TNT 1130 Titanium.

Basic Specs

Year2011
MakeBenelli
ModelBenelli TNT 1130 Titanium
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
TypeCylinders tilted forward 15 degrees. Anti-vibration countershafts
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchDry clutch
DrivelineStraight toothed primary gear, chain final

Performance

Horespower140.81 HP (102.8 kW)
Torque122.00 Nm (12.4 kgf-m or 90.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeDecomposable, front ASD steel trellis, rear alluminium alloy casting
Rake24.0°
Trail95 mm (3.7 inches)
Front SuspensionMarzocchi upside down fork totally adjustable Ø 50 mm
Front Travel120 mm (4.7 inches)
Rear SuspensionASD steel tube trellis swingarm with totally adjustable shock absorber
Rear Travel120 mm (4.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,100 mm (82.7 inches)
Total Width790 mm (31.1 inches)
Ground Clearance
Wheelbase1,419 mm (55.9 inches)
Dry Weight193.0 kg (425.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-;17
Rear Tire/Tyre180/55-;17
Front BrakesSingle disc. Bremo, floating disk
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter220 mm (8.7 inches)
WheelsMarchesini forged aluminium

Comments

It appears you're interested in specifications for the Benelli TNT 1130 Titanium. This Naked bike model is powered by a Cylinders tilted forward 15 degrees. Anti-vibration countershafts In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 140.81 HP (102.8 kW) horsepower and 122.00 Nm (12.4 kgf-m or 90.0 ft.lbs) torque. According to our records engine heat of the Benelli TNT 1130 Titanium is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-;17 and the rear is 180/55-;17 . The entire package is supported by the frame, Decomposable, front ASD steel trellis, rear alluminium alloy casting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Bremo, floating disk front brakes and Single disc. Bremo rear brakes. The Benelli TNT 1130 Titanium was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
