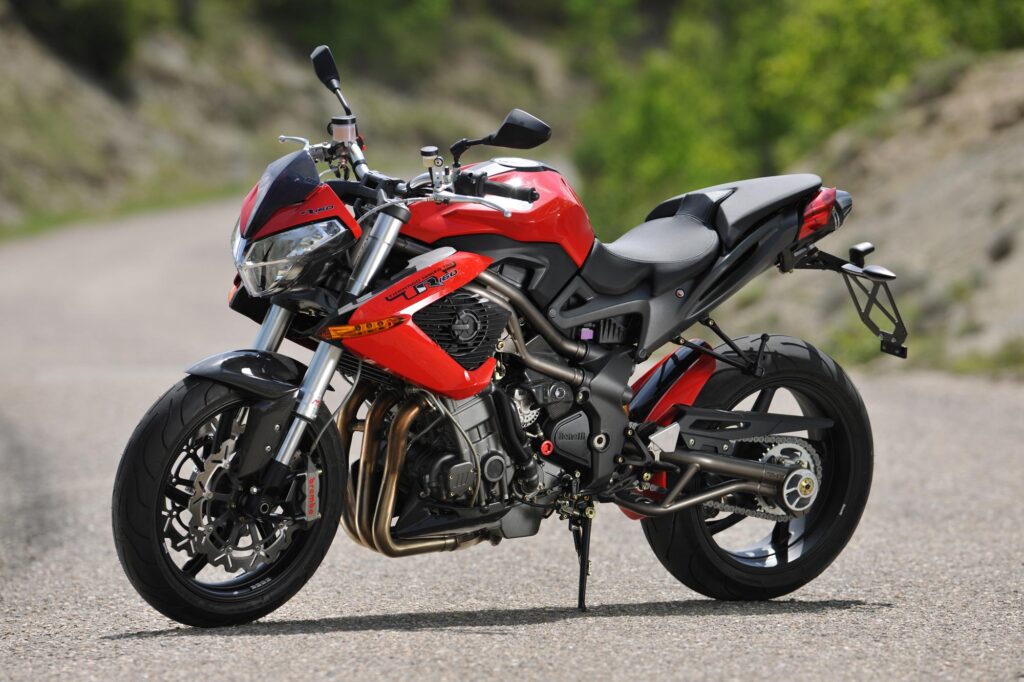

2011 Benelli TNT R160 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Benelli TNT R160.

Basic Specs

Year2011
MakeBenelli
ModelBenelli TNT R160
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
TypeTilted forward with anti-vibration countershaft
DetailsIn-line three, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Electronic injection with three throttle bodies ø53 mm
Ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWt, multidisk
DrivelineStraight toothed primary, cahian finally

Performance

Horespower155.00 HP (113.1 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame TypeDecomposable, front steel trestle, rear alluminium alloy casting
Rake24.0°
Trail95 mm (3.7 inches)
Front SuspensionØ50 mm upside-down fork, with idraulic extension / compression and spring preload adjustments
Front Travel120 mm (4.7 inches)
Rear SuspensionSteel trestle swingarm, progressive rear dumper with idraulic extension/compression and spring preload adjustments
Rear Travel120 mm (4.7 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,050 mm (41.3 inches)
Total Length2,128 mm (83.8 inches)
Total Width790 mm (31.1 inches)
Ground Clearance
Wheelbase1,443 mm (56.8 inches)
Dry Weight208.0 kg (458.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. Twin floating disks, 4-piston caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Twin piston caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Benelli TNT R160. This Naked bike model is powered by a Tilted forward with anti-vibration countershaft In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. Electronic injection with three throttle bodies ø53 mm allowing this machine to produce its 155.00 HP (113.1 kW) horsepower and 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) torque. According to our records engine heat of the Benelli TNT R160 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Decomposable, front steel trestle, rear alluminium alloy casting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Twin floating disks, 4-piston caliper front brakes and Single disc. Twin piston caliper rear brakes. The Benelli TNT R160 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
