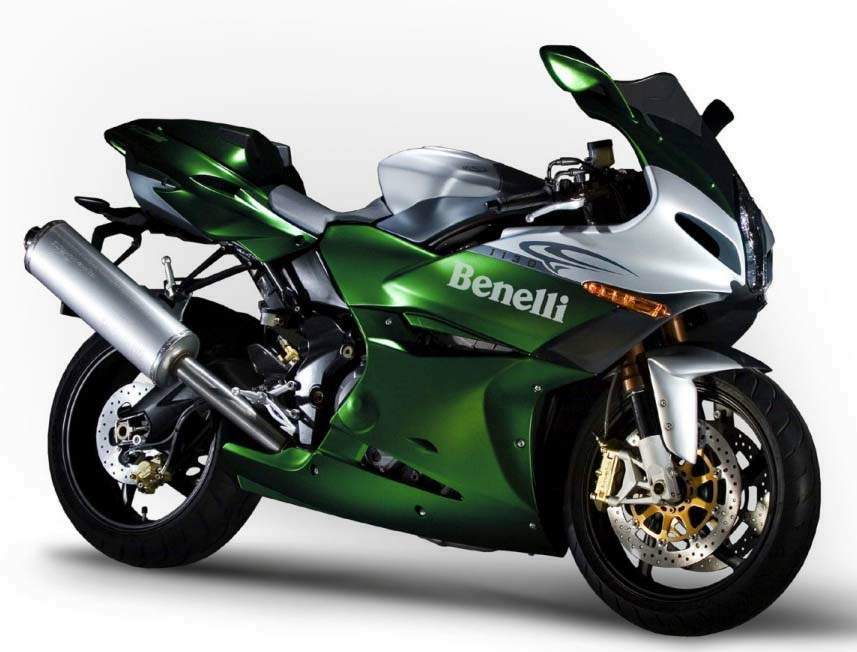

2011 Benelli Tornado Tre 1130 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Benelli Tornado Tre 1130.

Basic Specs

Year2011
MakeBenelli
ModelBenelli Tornado Tre 1130
TypeSport
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
TypeAnti-vibration countershafts
DetailsIn-line three, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Electronic injection with three throttle bodies ø53 mm
IgnitionDigital - inductive type via electronic engine management
ExhaustWith catalytic converter
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchDry clutch anti-hopping system
Driveline

Performance

Horespower160.92 HP (117.5 kW)
Torque124.00 Nm (12.6 kgf-m or 91.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeASD steel tube trellis. Aluminium subframe
Rake23.5°
Trail95 mm (3.7 inches)
Front SuspensionMarsocchi upside down fork totally adjustable
Front Travel
Rear SuspensionAluminium alloy box-type structure swingarm, progressive rear dumper with hydraulic extension / compression and spring preload adjustments
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,153 mm (45.4 inches)
Total Length2,039 mm (80.3 inches)
Total Width717 mm (28.2 inches)
Ground Clearance
Wheelbase1,419 mm (55.9 inches)
Dry Weight199.0 kg (438.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre190/50-17
Front BrakesSingle disc. Bremo
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Bremo
Rear Brake Diameter240 mm (9.4 inches)
WheelsDie-cast aluminium alloy

Comments

It appears you're interested in specifications for the Benelli Tornado Tre 1130. This Sport model is powered by a Anti-vibration countershafts In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Electronic injection with three throttle bodies ø53 mm allowing this machine to produce its 160.92 HP (117.5 kW) horsepower and 124.00 Nm (12.6 kgf-m or 91.5 ft.lbs) torque. According to our records engine heat of the Benelli Tornado Tre 1130 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 190/50-17 . The entire package is supported by the frame, ASD steel tube trellis. Aluminium subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Bremo front brakes and Single disc. Bremo rear brakes. The Benelli Tornado Tre 1130 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
