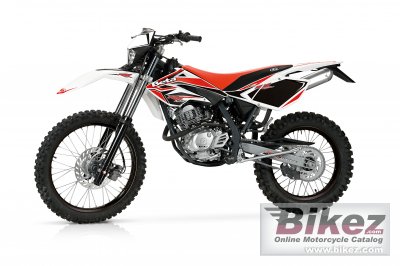

These are the known mechanical and performance specifications for your 2011 Beta RR Enduro 4T 125.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni UCAL 5Nh ø26-38
IgnitionElectronic Moriyama F5HH
Exhaust
LubricationForced with pump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multi-plate
DrivelinePrimary Z. 20/68. Final Z. 14/54.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.70 litres (1.51 gallons)
Emissions
Chassis
Frame TypeSteel double cradle frame
Rake
Trail
Front SuspensionHydraulic fork with ø41 mm shaft
Front Travel250 mm (9.8 inches)
Rear SuspensionMonoshock with adjustable spring preload
Rear Travel205 mm (8.1 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,215 mm (47.8 inches)
Total Length2,070 mm (81.5 inches)
Total Width820 mm (32.3 inches)
Ground Clearance335 mm (13.2 inches)
Wheelbase1,370 mm (53.9 inches)
Dry Weight103.0 kg (227.1 pounds)
Wet Weight110.0 kg (242.5 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
