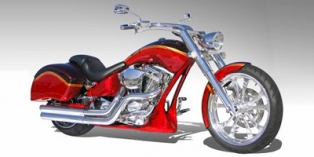

2011 Big Dog Bulldog Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Big Dog Bulldog.

Basic Specs

Year2011
MakeBig Dog
ModelBig Dog Bulldog
CostUS$ 39900. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1807.00 ccm (110.26 cubic inches)
TypeRubber monted engine
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke104.8 x 104.8 mm (4.1 x 4.1 inches)
Valves/Cylinder
FuelingInjection. CLEFI
IgnitionElectronic Single Fire
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch
Driveline6-Speed BDM Balance Drive. Chain primary drive - Spring Compensated

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame Type
Rake34.0°
Trail122 mm (4.8 inches)
Front Suspension41mm Telescopic
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height616 mm (24.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,578 mm (101.5 inches)
Total Width
Ground Clearance114 mm (4.5 inches)
Wheelbase1,895 mm (74.6 inches)
Dry Weight348.0 kg (767.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-R21
Rear Tire/Tyre250/40-R18
Front BrakesSingle disc. 4-piston Diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Big Dog Bulldog. This Custom / cruiser model is powered by a Rubber monted engine V2, four-stroke engine with 1807.00 ccm (110.26 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. CLEFI allowing this machine to produce its horsepower and torque. According to our records engine heat of the Big Dog Bulldog is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-R21 and the rear is 250/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston Diff bore front brakes and Single disc. 4-piston rear brakes. The Big Dog Bulldog was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Available Two-Up Seat and Sissy Bar System.
