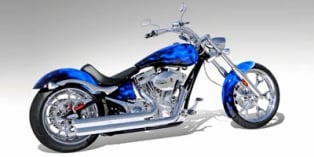

These are the known mechanical and performance specifications for your 2011 Big Dog Mastiff.
Basic Specs
Year2011
MakeBig Dog
ModelBig Dog Mastiff
TypeCustom / cruiser
CostUS$ 28900. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1917.00 ccm (116.98 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke104.0 x 111.1 mm (4.1 x 4.4 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
Cooling
Drivetrain
Gearbox6-speed
Final DriveBelt
Clutch
Driveline6-Speed BDM Balance Drive.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.40 litres (4.60 gallons)
Emissions
Chassis
Frame Type
Rake39.0°
Trail122 mm (4.8 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionHidden shocks
Rear Travel
Seat
Seat Height616 mm (24.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,616 mm (103.0 inches)
Total Width
Ground Clearance102 mm (4.0 inches)
Wheelbase1,969 mm (77.5 inches)
Dry Weight321.0 kg (707.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMH120-21
Rear Tire/Tyre300/35-18
Front BrakesSingle disc. 4-piston diff bore
Front Brake Diameter
Rear BrakesSingle disc. 4-piston
Rear Brake Diameter
Wheels
Comments
6´ Backbone Stretch. 42-Degree Total Rake.
