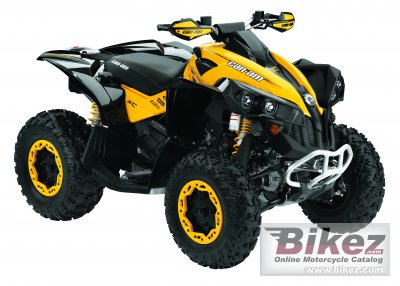

These are the known mechanical and performance specifications for your 2011 Can-Am Renegade 800R X XC.
Basic Specs
Year2011
MakeCan-Am
ModelCan-Am Renegade 800R X XC
TypeATV
CostUS$ 12399. Prices depend on country, taxes, accessories, etc.
Engine
Displacement799.90 ccm (48.81 cubic inches)
TypeBRP Rotax engine
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke91.0 x 62.0 mm (3.6 x 2.4 inches)
Valves/Cylinder
FuelingInjection. 46-mm Throttle Body, 2 Siemens∞ VDO injectors
Ignition650-watt magneto
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox
Final DriveShaft drive (cardan)
Clutch
DrivelineSelectable 2w/4w shaft driven with Visco-lok front differential
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.28 litres (4.30 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionKYB and #8734; HPG aluminum piggyback shocks with dual speed compression, rebound and preload adjustments
Front Travel
Rear SuspensionKYB HPG with remote reservoir shocks with dual speed compression, rebound and preload adjustments
Rear Travel
Seat
Seat Height876 mm (34.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance279 mm (11.0 inches)
Wheelbase
Dry Weight279.0 kg (615.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsCenter cast-aluminum. ITP Holeshot ATR tires.
Comments
