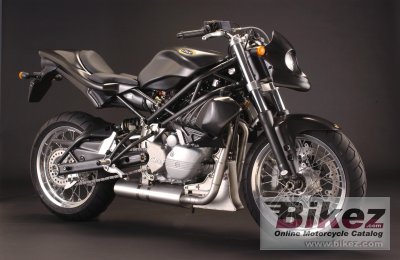

2011 CR&S VUN Road Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 CR&S VUN Road.

Basic Specs

Year2011
MakeCR&S
ModelCR&S VUN Road
Cost

Engine

Displacement652.00 ccm (39.79 cubic inches)
TypeBombardier-Rotax / CR and S type 654
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingInjection. Integrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark
IgnitionWalbro integrated
ExhaustStainless steel catalytic exhaust system
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multiplate
DrivelineO-ring chain

Performance

Horespower53.64 HP (39.2 kW)
Torque58.90 Nm (6.0 kgf-m or 43.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.50 litres (3.30 gallons)
Emissions

Chassis

Frame TypeSteel tubes and machined light alloy plates compound
Rake
Trail
Front SuspensionTele-hydraulic fork with 46mm diameter rods
Front Travel120 mm (4.7 inches)
Rear SuspensionOscillating swingarm, single shock absorber
Rear Travel128 mm (5.0 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height820 mm (32.3 inches) If adjustable, highest setting.
Total Height
Total Length1,980 mm (78.0 inches)
Total Width740 mm (29.1 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,368 mm (53.9 inches)
Dry Weight135.0 kg (297.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesSingle disc. Four opposing pistons radial caliper with 4 pads
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the CR&S VUN Road. This Naked bike model is powered by a Bombardier-Rotax / CR and S type 654 Single cylinder, four-stroke engine with 652.00 ccm (39.79 cubic inches) of actual displacement before 9.7:1 compression. Fueling is metered via Injection. Integrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark allowing this machine to produce its 53.64 HP (39.2 kW) horsepower and 58.90 Nm (6.0 kgf-m or 43.4 ft.lbs) torque. According to our records engine heat of the CR&S VUN Road is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Steel tubes and machined light alloy plates compound. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Four opposing pistons radial caliper with 4 pads front brakes and Single disc. Floating caliper rear brakes. The CR&S VUN Road was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CR and S is an abbreviation of Cafe Racers and Superbikes. The VUN is available in a tuned-up version not certified for road use and a depowered version.
