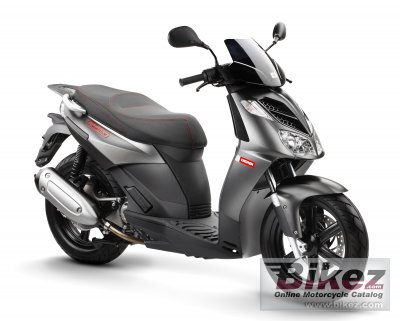

2011 Derbi Rambla 300i Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Derbi Rambla 300i.

Basic Specs

Year2011
MakeDerbi
ModelDerbi Rambla 300i
TypeScooter
Cost Euro 3661. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement278.30 ccm (16.98 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke75.0 x 63.0 mm (3.0 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. EFI
Ignition
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchCentrifugal
Driveline
Belt Clutch Plates

Performance

Horespower22.50 HP (16.4 kW)
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame TypeTubular steel cradle
Rake
Trail
Front Suspension35 mm hydraulic fork.
Front Travel100 mm (3.9 inches)
Rear SuspensionDouble hydraulic shock absorber with adjustable preload.
Rear Travel80 mm (3.1 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,985 mm (78.1 inches)
Total Width880 mm (34.6 inches)
Ground Clearance
Wheelbase1,360 mm (53.5 inches)
Dry Weight146.0 kg (321.9 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-15
Rear Tire/Tyre130/80-15
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsFive spoke black wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Derbi Rambla 300i. This Scooter model is powered by a Single cylinder, four-stroke engine with 278.30 ccm (16.98 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 22.50 HP (16.4 kW) horsepower and torque. According to our records engine heat of the Derbi Rambla 300i is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-15 and the rear is 130/80-15 . The entire package is supported by the frame, Tubular steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Derbi Rambla 300i was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Spanish scooter.
