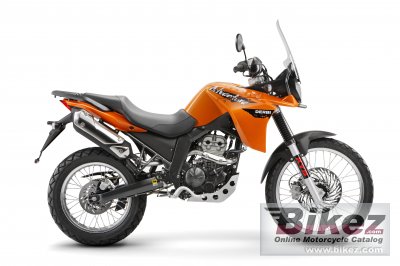

These are the known mechanical and performance specifications for your 2011 Derbi Terra Adventure 125.
Basic Specs
Year2011
MakeDerbi
ModelDerbi Terra Adventure 125
TypeEnduro / offroad
Cost Euro 3966. UK £ 3079. Prices depend on country, taxes, accessories, etc.
Engine
Displacement124.20 ccm (7.58 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke58.0 x 47.0 mm (2.3 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor. 30 mm
IgnitionElectronic CDI
Exhaust
LubricationDry sump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions
Chassis
Frame TypeSteel perimetral double beam. Double steel swing arm.
Rake
Trail
Front Suspension41 mm hydraulic fork
Front Travel150 mm (5.9 inches)
Rear SuspensionMono-shock with adjustable spring pre-load.
Rear Travel150 mm (5.9 inches)
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,408 mm (55.4 inches)
Total Length2,195 mm (86.4 inches)
Total Width793 mm (31.2 inches)
Ground Clearance
Wheelbase1,454 mm (57.2 inches)
Dry Weight117.0 kg (257.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Derbi bikes are made in Spain.
