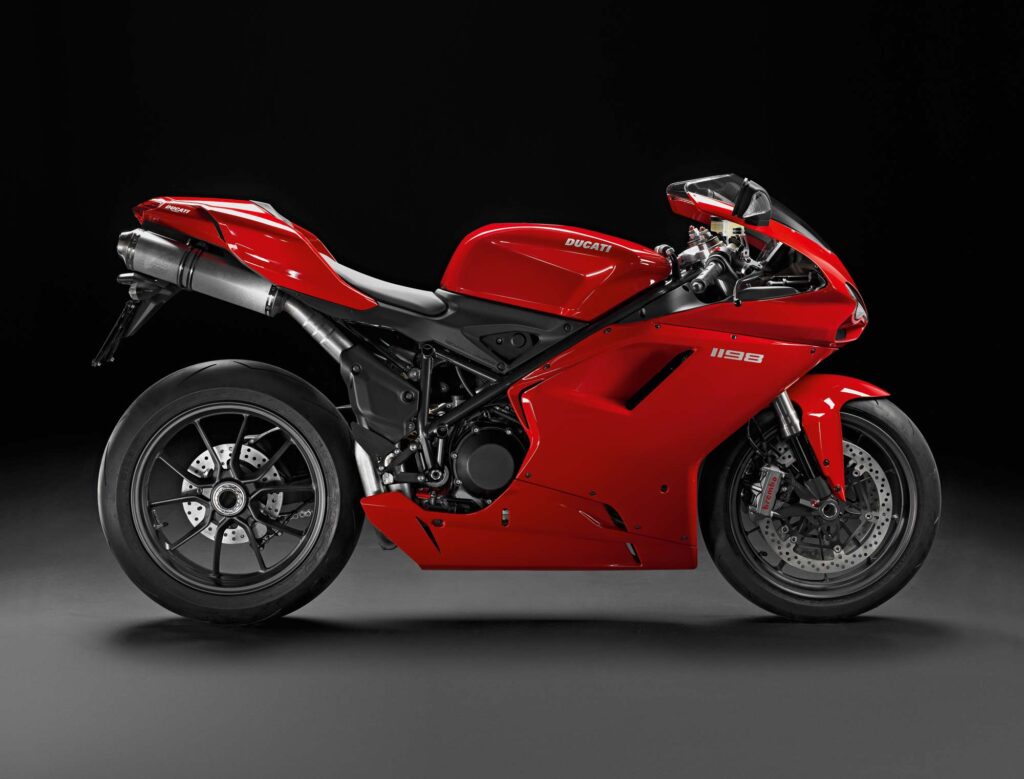

2011 Ducati Superbike 1198 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Ducati Superbike 1198.

Basic Specs

Year2011
MakeDucati
ModelDucati Superbike 1198
TypeSport
CostUS$ 16495. Prices depend on country, taxes, accessories, etc.

Engine

Displacement849.40 ccm (51.83 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression13.2:1
Bore/Stroke94.0 x 61.2 mm (3.7 x 2.4 inches)
Valves/Cylinder
FuelingInjection. Marelli electronic fuel injection, elliptical throttle bodies
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate with hydraulic control
DrivelineFront sprocket 15; Rear sprocket 39

Performance

Horespower170.00 HP (124.1 kW)
Torque131.40 Nm (13.4 kgf-m or 96.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.50 litres (4.10 gallons)
Emissions

Chassis

Frame Type
Rake24.5°
Trail
Front SuspensionShowa 43mmfully adjustable usd forks
Front Travel127 mm (5.0 inches)
Rear SuspensionShowa rear suspension
Rear Travel120 mm (4.7 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,430 mm (56.3 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston calliper
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati Superbike 1198. This Sport model is powered by a V2, four-stroke engine with 849.40 ccm (51.83 cubic inches) of actual displacement before 13.2:1 compression. Fueling is metered via Injection. Marelli electronic fuel injection, elliptical throttle bodies allowing this machine to produce its 170.00 HP (124.1 kW) horsepower and 131.40 Nm (13.4 kgf-m or 96.9 ft.lbs) torque. According to our records engine heat of the Ducati Superbike 1198 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers front brakes and Single disc. 2-piston calliper rear brakes. The Ducati Superbike 1198 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
