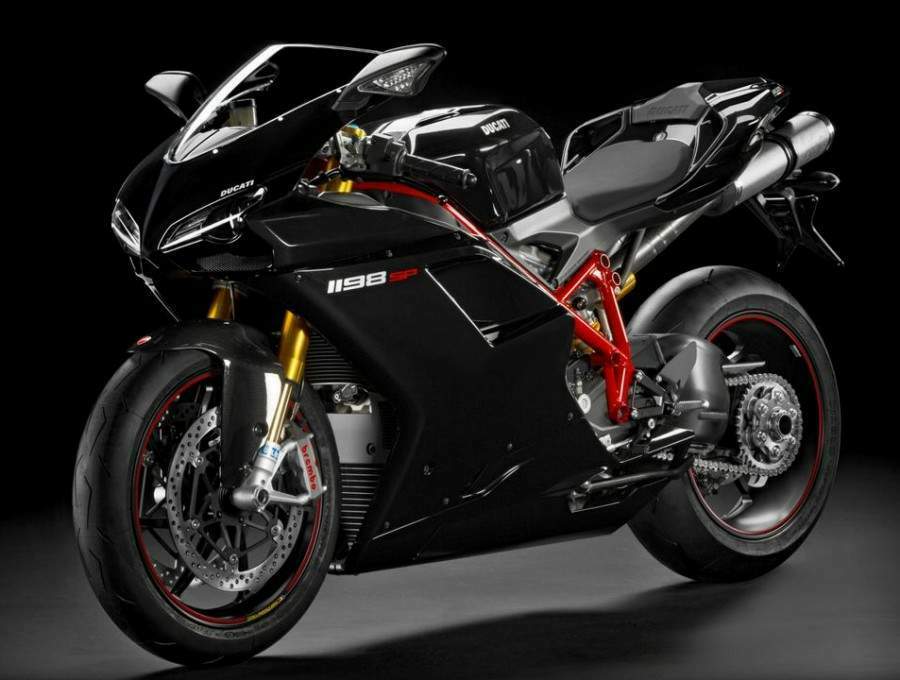

2011 Ducati Superbike 1198 SP Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Ducati Superbike 1198 SP.

Basic Specs

Year2011
MakeDucati
ModelDucati Superbike 1198 SP
TypeSport
Cost

Engine

Displacement1198.40 ccm (73.13 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression12.7:1
Bore/Stroke106.0 x 67.9 mm (4.2 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. Marelli electronic fuel injection, elliptical throttle bodies
Ignition
ExhaustLightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchDry multiplate with hydraulic control slupper clutch
DrivelinePrimary drive: Straight cut gears, Ratio 1.84:1. Chain; Front sprocket 15; Rear sprocket 38

Performance

Horespower170.00 HP (124.1 kW)
Torque131.53 Nm (13.4 kgf-m or 97.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame TypeTubular steel Trellis frame in ALS 450
Rake24.0°
Trail
Front SuspensionOhlins 43mm fully adjustable usd forks with TiN
Front Travel127 mm (5.0 inches)
Rear SuspensionProgressive linkage with fully adjustable Öhlins TTX monoshock with top-out spring. Aluminium single-sided swingarm
Rear Travel120 mm (4.7 inches)
SeatDual seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,430 mm (56.3 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre190/55-17
Front BrakesDouble disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter245 mm (9.6 inches)
Wheels7-spoke forged light alloy

Comments

It appears you're interested in specifications for the Ducati Superbike 1198 SP. This Sport model is powered by a V2, four-stroke engine with 1198.40 ccm (73.13 cubic inches) of actual displacement before 12.7:1 compression. Fueling is metered via Injection. Marelli electronic fuel injection, elliptical throttle bodies allowing this machine to produce its 170.00 HP (124.1 kW) horsepower and 131.53 Nm (13.4 kgf-m or 97.0 ft.lbs) torque. According to our records engine heat of the Ducati Superbike 1198 SP is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 190/55-17 . The entire package is supported by the frame, Tubular steel Trellis frame in ALS 450. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers front brakes and Single disc. 2-piston rear brakes. The Ducati Superbike 1198 SP was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
