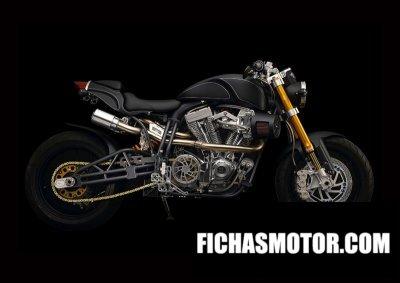

These are the known mechanical and performance specifications for your 2011 Ecosse Iconoclast.
Basic Specs
Engine
Displacement1966.00 ccm (119.97 cubic inches)
TypeMachined from solid billet aluminum
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke108.0 x 108.0 mm (4.3 x 4.3 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
ExhaustSpecial custom racing exhaust for Iconoclast Series; machined from solid with ECOSSE logo machined on mufflers. Exhaust duplexer located for maximum torque.
Lubrication
CoolingLiquid
Performance
Horespower135.00 HP (98.5 kW)
Torque189.84 Nm (19.4 kgf-m or 140.0 ft.lbs)
Top Speed
Chassis
Frame Type4130 Chrome-moly TIG welded by hand. FEA tested. Oil circulates through 3” backbone and all four 1¿ down tubes for additional cooling. Trellis-style double-sided swingarm and subframe.
Rake
Trail
Front SuspensionCustom Öhlins, fully adjustable forks
Front Travel
Rear SuspensionÖhlins custom shocks
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight208.7 kg (460.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/70-ZR17
Front BrakesDouble disc. 6-piston radial calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston calipers
Rear Brake Diameter260 mm (10.2 inches)
WheelsBlack forged aluminum 17” wheels
Comments
Limited edition of only 11 bikes.
