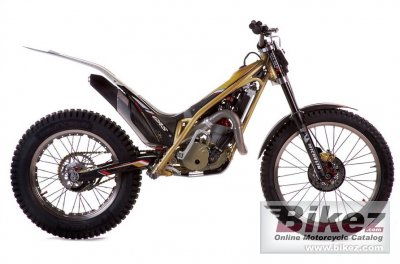

2011 GAS GAS TXT Pro Raga 280 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 GAS GAS TXT Pro Raga 280.

Basic Specs

Year2011
MakeGAS GAS
ModelGAS GAS TXT Pro Raga 280
Cost

Engine

Displacement272.00 ccm (16.60 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke76.0 x 60.0 mm (3.0 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 28 - Intake by reed valve
Ignition
Exhaust
LubricationFuel mixed 1:50
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchGG 1/3 hydraulic-diaphragm-system
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity2.50 litres (0.66 gallons)
Emissions

Chassis

Frame TypeChrom-Molybdenum tubular frame
Rake
Trail
Front SuspensionMarzocchi 40 mm Aluminium Right-Sight-Up. Adjustable compression and rebound.
Front Travel177 mm (7.0 inches)
Rear SuspensionAluminium swing arm. Progressive system with Sachs shock absorbers. Adjustable rebound and spring preload
Rear Travel164 mm (6.5 inches)
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,045 mm (80.5 inches)
Total Width825 mm (32.5 inches)
Ground Clearance
Wheelbase1,340 mm (52.8 inches)
Dry Weight66.5 kg (146.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-21
Rear Tire/Tyre4.00-18
Front BrakesSingle disc. Galfer ´Wave´ floating, 4-piston caliper
Front Brake Diameter185 mm (7.3 inches)
Rear BrakesSingle disc. Galfer ´Wave´ disc, 2-piston caliper
Rear Brake Diameter150 mm (5.9 inches)
WheelsLight aluminium spoke rim

Comments

It appears you're interested in specifications for the GAS GAS TXT Pro Raga 280. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 272.00 ccm (16.60 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin PWK 28 - Intake by reed valve allowing this machine to produce its horsepower and torque. According to our records engine heat of the GAS GAS TXT Pro Raga 280 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.75-21 and the rear is 4.00-18 . The entire package is supported by the frame, Chrom-Molybdenum tubular frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Galfer ´Wave´ floating, 4-piston caliper front brakes and Single disc. Galfer ´Wave´ disc, 2-piston caliper rear brakes. The GAS GAS TXT Pro Raga 280 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
