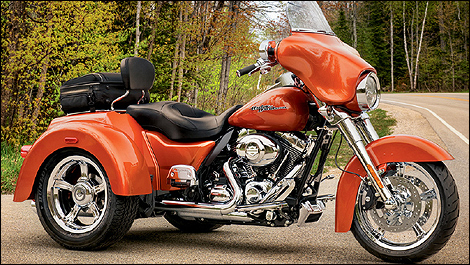

2011 Harley-Davidson FLHXXX Street Glide Trike Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLHXXX Street Glide Trike.

Basic Specs

Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLHXXX Street Glide Trike
CostUS$ 30499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeTwin Cam 103. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder.
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke95.3 x 111.0 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustTwo-into-One-into-Two chrome exhaust
LubricationPressurized, dry-sump with oil cooler
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate, wet
DrivelinePrimary Drive: Chain, 34/46 ratio. Final Drive: Belt, 30/70 ratio.

Performance

Horespower
Torque137.00 Nm (14.0 kgf-m or 101.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.71 litres (6.00 gallons)
Emissions

Chassis

Frame TypeMild steel, square-section backbone with twin downtubes
Rake26.0°
Trail100 mm (3.9 inches)
Front Suspension41.3 mm telescopic, triple-circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable shocks
Rear Travel75 mm (3.0 inches)
Seat
Seat Height721 mm (28.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,687 mm (105.8 inches)
Total Width1,389 mm (54.7 inches)
Ground Clearance119 mm (4.7 inches)
Wheelbase1,691 mm (66.6 inches)
Dry Weight485.0 kg (1,069.2 pounds)
Wet Weight503.0 kg (1,108.9 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/Tyre205/65-R16
Front BrakesSingle disc. ABS
Front Brake Diameter299 mm (11.8 inches)
Rear BrakesDouble disc. ABS
Rear Brake Diameter228 mm (9.0 inches)
WheelsBlack, 7-spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson FLHXXX Street Glide Trike. This Custom / cruiser model is powered by a Twin Cam 103. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder. V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 137.00 Nm (14.0 kgf-m or 101.1 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHXXX Street Glide Trike is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is 205/65-R16 . The entire package is supported by the frame, Mild steel, square-section backbone with twin downtubes. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS front brakes and Double disc. ABS rear brakes. The Harley-Davidson FLHXXX Street Glide Trike was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Three wheel bike.
