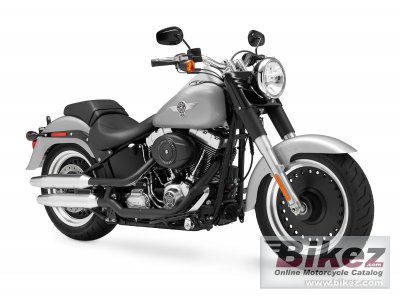

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLSTFB Fat Boy Special.
Basic Specs
Engine
Displacement1584.00 ccm (96.66 cubic inches)
TypeTwin Cam 96B
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust
LubricationPressurized, dry-sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate, wet
Driveline• HDI, BRZ
Performance
Horespower
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast,
Rake31.6°
Trail147 mm (5.8 inches)
Front Suspension41.3 mm telescopic, “beer can” covers
Front Travel130 mm (5.1 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel91 mm (3.6 inches)
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,085 mm (42.7 inches)
Total Length2,385 mm (93.9 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight318.0 kg (701.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsBlack, Bullet Hole Disc Cast Aluminum (HDI, BRZ)
