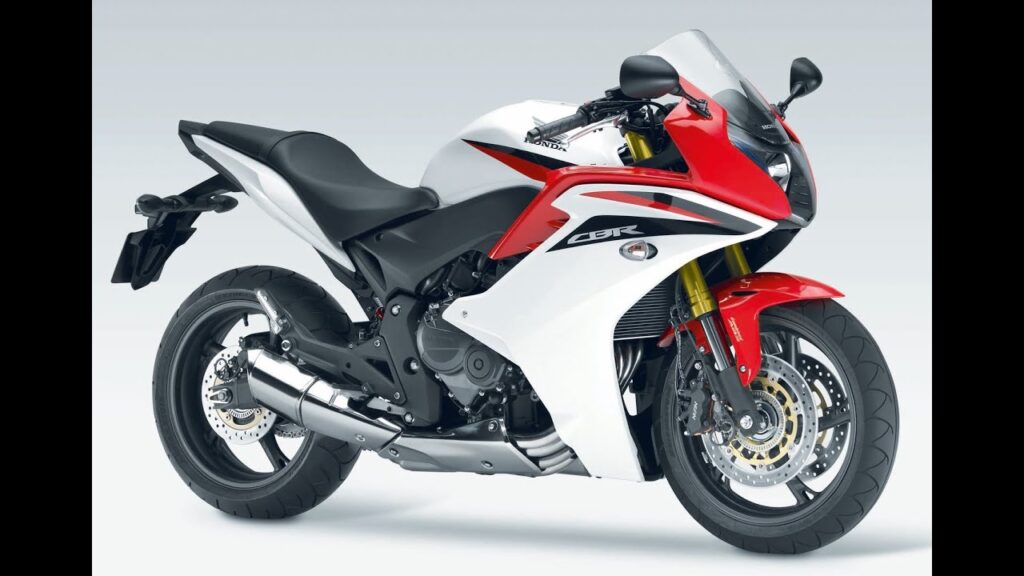

2011 Honda CBR600F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Honda CBR600F.

Basic Specs

Year2011
MakeHonda
ModelHonda CBR600F
TypeSport
Cost

Engine

Displacement600.00 ccm (36.61 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke67.0 x 0.0 mm (2.6 x inches)
Valves/Cylinder4
FuelingInjection
IgnitionDigital CDI
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox
Final DriveChain
ClutchWet, multiple discs, cable operated
Driveline

Performance

Horespower136.78 HP (99.8 kW)
Torque64.00 Nm (6.5 kgf-m or 47.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeAluminium, Backbone
Rake25.0°
Trail99 mm (3.9 inches)
Front SuspensionCartridge fork
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle shock, swingarm
Rear Travel46 mm (1.8 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,150 mm (84.6 inches)
Total Width740 mm (29.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase
Dry Weight
Wet Weight198.0 kg (436.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Optional ABS
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Optional ABS
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CBR600F. This Sport model is powered by a In-line four, four-stroke engine with 600.00 ccm (36.61 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 136.78 HP (99.8 kW) horsepower and 64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) torque. According to our records engine heat of the Honda CBR600F is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminium, Backbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS front brakes and Single disc. Optional ABS rear brakes. The Honda CBR600F was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
