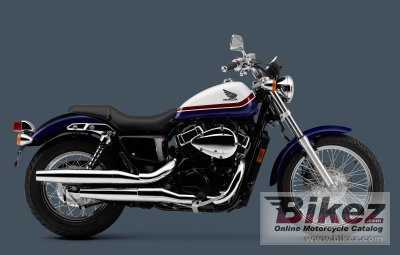

2011 Honda Shadow RS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Honda Shadow RS.

Basic Specs

Year2011
MakeHonda
ModelHonda Shadow RS
TypeClassic
Cost
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement745.00 ccm (45.46 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke79.0 x 76.0 mm (3.1 x 3.0 inches)
Valves/Cylinder3
Fueling
IgnitionCD with electronic advance, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
DrivelineO-ring-sealed chain
Chain Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.60 litres (2.80 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake32.3°
Trail134 mm (5.3 inches)
Front Suspension41mm fork
Front Travel117 mm (4.6 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel89 mm (3.5 inches)
Seat
Seat Height747 mm (29.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,562 mm (61.5 inches)
Dry Weight
Wet Weight230.0 kg (507.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre150/80-16
Front BrakesDouble disc. Two-piston calipers
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesExpanding brake (drum brake). Sigle piston
Rear Brake Diameter180 mm (7.1 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda Shadow RS. This Classic model is powered by a V2, four-stroke engine with 745.00 ccm (45.46 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Shadow RS is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 150/80-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Two-piston calipers front brakes and Expanding brake (drum brake). Sigle piston rear brakes. The Honda Shadow RS was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: VT750RS
