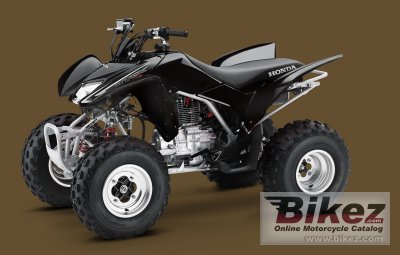

2011 Honda TRX250X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Honda TRX250X.

Basic Specs

Year2011
MakeHonda
ModelHonda TRX250X
TypeATV
CostUS$ 4399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement229.00 ccm (13.97 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke68.5 x 62.2 mm (2.7 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. 22mm piston-valve carburetor
IgnitionCD with electronic advance
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchHonda SportClutch™
DrivelineDirect rear drive-shaft

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.46 litres (2.50 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel150 mm (5.9 inches)
Rear SuspensionSwingarm with single shock
Rear Travel145 mm (5.7 inches)
Seat
Seat Height798 mm (31.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,077 mm (42.4 inches)
Total Length1,740 mm (68.5 inches)
Total Width1,062 mm (41.8 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,125 mm (44.3 inches)
Dry Weight
Wet Weight171.9 kg (379.0 pounds)

Wheels & Brakes

Front Tire/Tyre22/7-10
Rear Tire/Tyre20/10-9
Front BrakesDouble disc
Front Brake Diameter174 mm (6.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda TRX250X. This ATV model is powered by a Single cylinder, four-stroke engine with 229.00 ccm (13.97 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor. 22mm piston-valve carburetor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda TRX250X is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 22/7-10 and the rear is 20/10-9 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Expanding brake (drum brake) rear brakes. The Honda TRX250X was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: TRX250X
