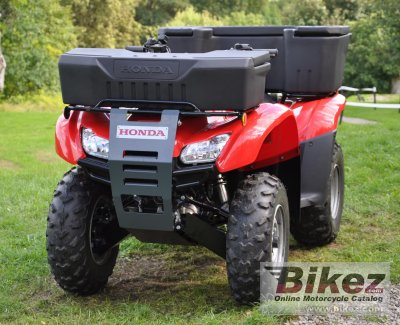

2011 Honda TRX420FA Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Honda TRX420FA.

Basic Specs

Year2011
MakeHonda
ModelHonda TRX420FA
TypeATV
Cost

Engine

Displacement420.00 ccm (25.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke86.5 x 71.5 mm (3.4 x 2.8 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI
IgnitionFull-transistorized type with electronic advance
Exhaust
Lubricationsemi-dry-sump
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchAutomatic
DrivelineDriveline Direct front and rear driveshafts

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.24 litres (3.50 gallons)
Emissions

Chassis

Frame TypeIndependent double-wishbone; 6.3 inches travel
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel160 mm (6.3 inches)
Rear SuspensionIndependent double-wishbone
Rear Travel160 mm (6.3 inches)
Seat
Seat Height823 mm (32.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,146 mm (45.1 inches)
Total Length2,055 mm (80.9 inches)
Total Width1,171 mm (46.1 inches)
Ground Clearance231 mm (9.1 inches)
Wheelbase1,255 mm (49.4 inches)
Dry Weight
Wet Weight282.6 kg (623.0 pounds)

Wheels & Brakes

Front Tire/Tyre24/8-12
Rear Tire/Tyre24/10-11
Front BrakesDouble disc. Hydraulic
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda TRX420FA. This ATV model is powered by a Single cylinder, four-stroke engine with 420.00 ccm (25.63 cubic inches) of actual displacement before compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda TRX420FA is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 24/8-12 and the rear is 24/10-11 . The entire package is supported by the frame, Independent double-wishbone; 6.3 inches travel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Hydraulic front brakes and Single disc. Hydraulic rear brakes. The Honda TRX420FA was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

With reverse. Model named Honda FourTrax Ranger AT in some markets. Model Id: TRX420FA.
