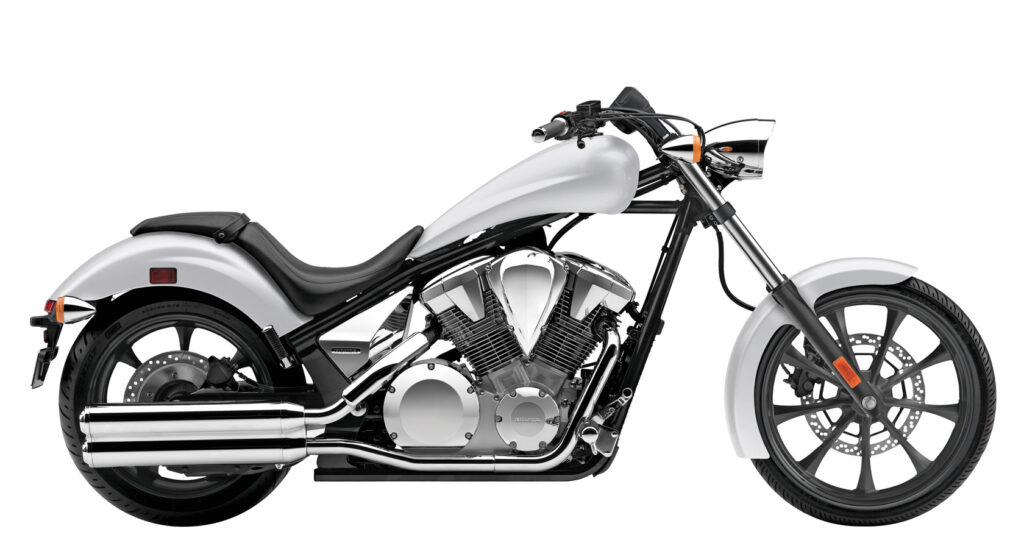

These are the known mechanical and performance specifications for your 2011 Honda VT1300CS ABS.
Basic Specs
Engine
Displacement1312.00 ccm (80.06 cubic inches)
TypeSC61E Engine
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke89.5 x 104.3 mm (3.5 x 4.1 inches)
Valves/Cylinder3
FuelingInjection
Ignitiontransistor type
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower
Torque103.00 Nm (10.5 kgf-m or 76.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions
Chassis
Frame Type
Rake33.0°
Trail115 mm (4.5 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSwing arm
Rear Travel
Seat2 person seat
Seat Height684 mm (26.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length2,580 mm (101.6 inches)
Total Width820 mm (32.3 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,785 mm (70.3 inches)
Dry Weight310.0 kg (683.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre170/80-15M
Front BrakesSingle disc. Anti-lock braking (ABS)
Front Brake Diameter
Rear BrakesSingle disc. Anti-lock braking (ABS)
Rear Brake Diameter
Wheels
Comments
Sold in Japan.
