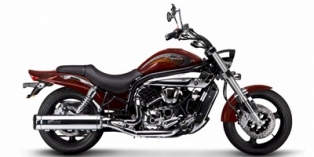

2011 Hyosung GV 650 Avitar Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Hyosung GV 650 Avitar.

Basic Specs

Year2011
MakeHyosung
ModelHyosung GV 650 Avitar
CostUS$ 6699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement647.00 ccm (39.48 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke81.5 x 62.0 mm (3.2 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Fuel Injection include immobilizer.
Ignition
Exhaust
Lubrication  Wet sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch  Wet, Multiplate
Driveline

Performance

Horespower79.00 HP (57.7 kW)
Torque66.99 Nm (6.8 kgf-m or 49.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.90 litres (4.20 gallons)
Emissions

Chassis

Frame Type
Rake34.0°
Trail
Front Suspension Upside down Telescopic (Compression, Rebound damping adjustable)
Front Travel
Rear Suspension Swing arm with Hydraulic Double shock absorber (Preload adjustable)
Rear Travel
Seat
Seat Height706 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,151 mm (45.3 inches)
Total Length2,431 mm (95.7 inches)
Total Width841 mm (33.1 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1,699 mm (66.9 inches)
Dry Weight229.0 kg (504.9 pounds)
Wet Weight244.0 kg (537.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR18
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Semi floating double discs, 2 pistons calipers
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 2 pistons caliper
Rear Brake Diameter270 mm (10.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Hyosung GV 650 Avitar. This Custom / cruiser model is powered by a 90° V-twin V2, four-stroke engine with 647.00 ccm (39.48 cubic inches) of actual displacement before 11.6:1 compression. Fueling is metered via Injection. Fuel Injection include immobilizer. allowing this machine to produce its 79.00 HP (57.7 kW) horsepower and 66.99 Nm (6.8 kgf-m or 49.4 ft.lbs) torque. According to our records engine heat of the Hyosung GV 650 Avitar is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR18 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi floating double discs, 2 pistons calipers front brakes and Single disc. 2 pistons caliper rear brakes. The Hyosung GV 650 Avitar was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
