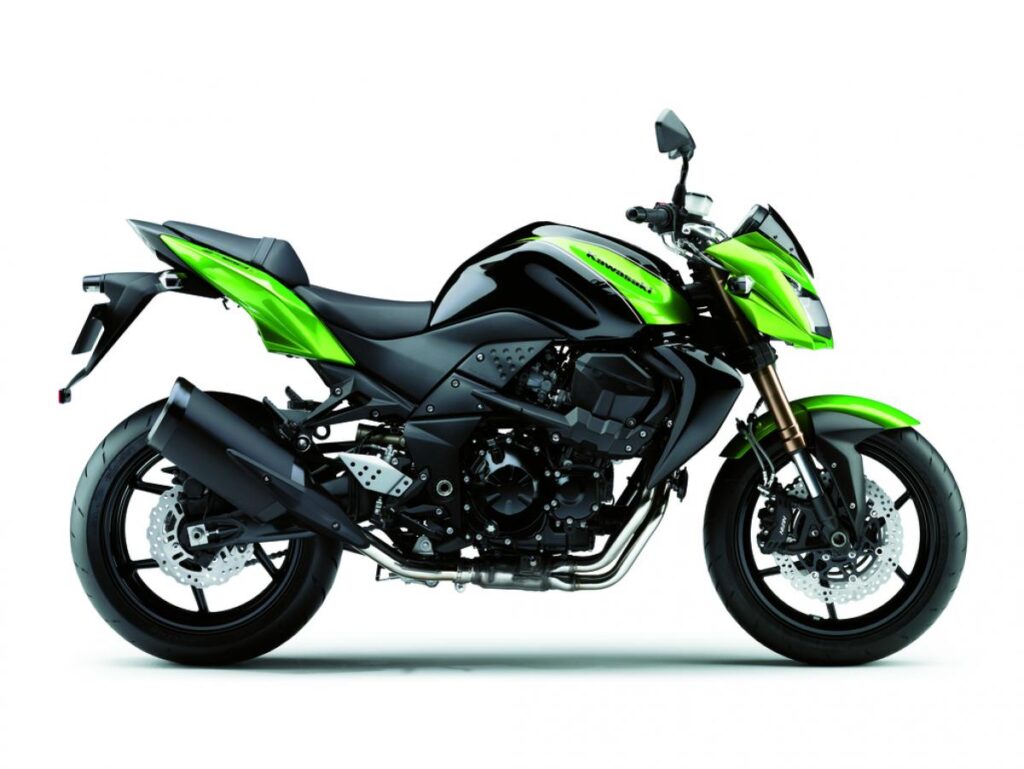

These are the known mechanical and performance specifications for your 2011 Kawasaki Z 750 R.
Basic Specs
Engine
Displacement748.00 ccm (45.64 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke68.4 x 50.9 mm (2.7 x 2.0 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationForced lubrication, wet sump
CoolingLiquid
Drivetrain
Gearbox
Final DriveChain
ClutchWet mDouble disk, manual
DrivelineSealed chain
Performance
Horespower104.20 HP (76.1 kW)
Torque78.00 Nm (8.0 kgf-m or 57.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.50 litres (4.89 gallons)
Emissions
Chassis
Frame TypeFrame type
Rake24.5°
Trail103 mm (4.1 inches)
Front Suspension41 mm inverted fork with rebound
Front Travel120 mm (4.7 inches)
Rear SuspensionBottom-Link Uni-Trak, gas-charged shock with piggyback reservoir
Rear Travel134 mm (5.3 inches)
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,070 mm (42.1 inches)
Total Length2,085 mm (82.1 inches)
Total Width795 mm (31.3 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,440 mm (56.7 inches)
Dry Weight224.0 kg (493.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Optional ABS. Semi-floating 300 mm petal discs Caliper: Dual radial-mount, opposed 4-piston.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Optional ABS. Single piston.
Rear Brake Diameter250 mm (9.8 inches)
Wheels
