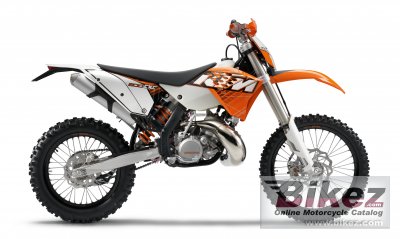

2011 KTM 200 EXC Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 KTM 200 EXC.

Basic Specs

Year2011
MakeKTM
ModelKTM 200 EXC
Cost

Engine

Displacement193.00 ccm (11.78 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.5:1
Bore/Stroke64.0 x 60.0 mm (2.5 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 36 S AG
IgnitionKokusan
ExhaustAluminium
LubricationMixture oil lubrication 1:60
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet mDouble disk clutch, operated hydraulically
Driveline14:42 (14:45). Primary drive: 23:73.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 steel. Subframe: Aluminium.
Rake26.5°
Trail
Front SuspensionWP USD 48 mm (1.89 in)
Front Travel185 mm (7.3 inches)
Rear SuspensionWP PDS shock absorber
Rear Travel185 mm (7.3 inches)
Seat
Seat Height985 mm (38.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance390 mm (15.4 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight97.0 kg (213.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels1.60 x 21in., 2.15 x 18in. Excel

Comments

It appears you're interested in specifications for the KTM 200 EXC. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 193.00 ccm (11.78 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. Keihin PWK 36 S AG allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 200 EXC is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/90-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 steel. Subframe: Aluminium.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 200 EXC was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
