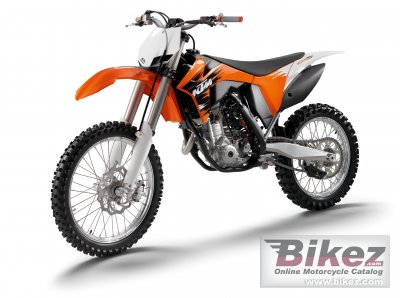

2011 KTM 250 SX-F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 KTM 250 SX-F.

Basic Specs

Year2011
MakeKTM
ModelKTM 250 SX-F
Cost

Engine

Displacement248.60 ccm (15.17 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.2:1
Bore/Stroke76.0 x 54.8 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin EFI, throttle body 42 mm
IgnitionKeihin EMS
ExhaustAluminium
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet mDouble disk clutch, operated hydraulically
Driveline13:48. Primary drive: 22:68.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions

Chassis

Frame TypeCentral double-cradle-type 25CrMo4. Subframe: Aluminium.
Rake26.5°
Trail
Front SuspensionWP USD 48 mm (1.89 in)
Front Travel185 mm (7.3 inches)
Rear SuspensionWP-Monoshock with linkage
Rear Travel185 mm (7.3 inches)
Seat
Seat Height992 mm (39.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance375 mm (14.8 inches)
Wheelbase1,495 mm (58.9 inches)
Dry Weight99.9 kg (220.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels1.60 x 21in., 2.15 x 19in. Excel

Comments

It appears you're interested in specifications for the KTM 250 SX-F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 248.60 ccm (15.17 cubic inches) of actual displacement before 13.2:1 compression. Fueling is metered via Carburettor. Keihin EFI, throttle body 42 mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 250 SX-F is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 100/90-19 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4. Subframe: Aluminium.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 250 SX-F was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
