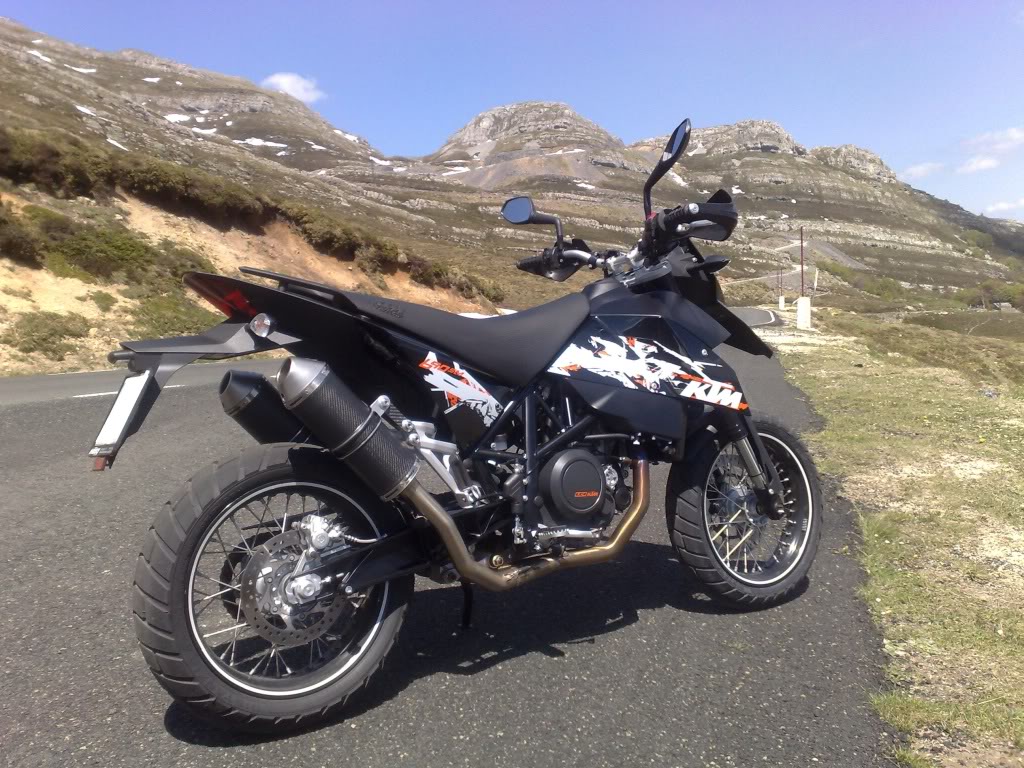

These are the known mechanical and performance specifications for your 2011 KTM 690 Supermoto Limited Edition.
Basic Specs
Engine
Displacement654.00 ccm (39.91 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionKokusan digital
ExhaustTwin stainless-steel silencer with regulated catalytic converters
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchAPTC slipper clutch, hydraulically operated
Driveline16:40. Primary drive: 36:79.
Performance
Horespower62.76 HP (45.8 kW)
Torque65.00 Nm (6.6 kgf-m or 47.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions
Chassis
Frame TypeChromium-Molybdenum trellis frame, powder coated. Subframe: Aluminium 7020.
Rake26.5°
Trail115 mm (4.5 inches)
Front SuspensionWP USD 48 mm (1.89 in)
Front Travel210 mm (8.3 inches)
Rear SuspensionWP mono shock with Pro Lever Linkage
Rear Travel210 mm (8.3 inches)
Seat
Seat Height880 mm (34.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance245 mm (9.6 inches)
Wheelbase1,472 mm (58.0 inches)
Dry Weight154.0 kg (339.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-R17
Front BrakesSingle disc. ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
WheelsSpoked wheels with aluminium rims, 3.5 x 17in., 5.0 x 17in.
