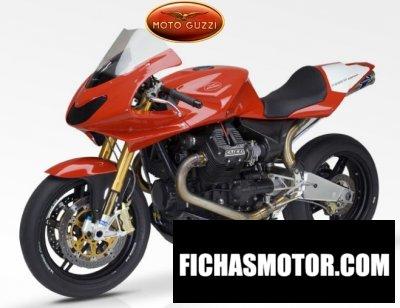

These are the known mechanical and performance specifications for your 2011 Moto Guzzi MGS-01 Corsa.
Basic Specs
Year2011
MakeMoto Guzzi
ModelMoto Guzzi MGS-01 Corsa
TypeSport
Cost Euro 25640. UK £ 18499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1225.00 ccm (74.75 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke100.0 x 78.0 mm (3.9 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
IgnitionMarelli IAW 15M electronic digital
Exhaust
LubricationSplash
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSintering double disc, hydraulic drive
DrivelinePrimary drive: straight – tooth gear, ratio 1: 1.55. Secondary drive: double universal joint, ratio 1:2.909
Performance
Horespower128.00 HP (93.4 kW)
Torque113.00 Nm (11.5 kgf-m or 83.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.50 litres (4.89 gallons)
Emissions
Chassis
Frame TypeRectangular section single-beam ALS 450
Rake24.0°
Trail97 mm (3.8 inches)
Front SuspensionÖhlins up-side down fork Ø 43 mm, 3 adjustment positions
Front Travel120 mm (4.7 inches)
Rear SuspensionAluminium-plate swinging fork Öhlins monoshock absorber, 4 adjustment positions
Rear Travel125 mm (4.9 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,165 mm (45.9 inches)
Total Length2,070 mm (81.5 inches)
Total Width
Ground Clearance185 mm (7.3 inches)
Wheelbase1,450 mm (57.1 inches)
Dry Weight192.0 kg (423.3 pounds)
Wet Weight210.0 kg (463.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/60-17
Rear Tire/Tyre180/67-17
Front BrakesDouble disc. Floating discs, 4 pads radial caliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesDouble disc. Double piston caliper
Rear Brake Diameter220 mm (8.7 inches)
WheelsForged aluminium 5 spokes
