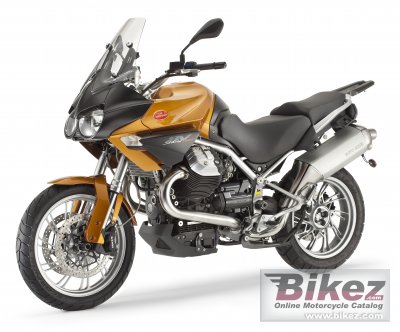

2011 Moto Guzzi Stelvio 1200 4V ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Moto Guzzi Stelvio 1200 4V ABS.

Basic Specs

Year2011
MakeMoto Guzzi
ModelMoto Guzzi Stelvio 1200 4V ABS
CostUS$ 15990. Euro 12590. UK £ 10299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type90° V-twin.
DetailsV2, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder2
FuelingInjection
IgnitionMultipoint sequential electronic ignition, Magneti Marelli
ExhaustStainless steel two-into-one
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc with integrated anti-vibration buffer
DrivelinePrimary transmission with helical teeth, ratio 26/35 = 1: 1.346. Final drive: Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666.

Performance

Horespower105.00 HP (76.6 kW)
Torque108.00 Nm (11.0 kgf-m or 79.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame TypeTubular in high-strength steel with integrated engine
Rake27.0°
Trail125 mm (4.9 inches)
Front SuspensionUpside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Front Travel170 mm (6.7 inches)
Rear SuspensionProgressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Rear Travel155 mm (6.1 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,475 mm (58.1 inches)
Total Length2,250 mm (88.6 inches)
Total Width1 mm (0.0 inches)
Ground Clearance210 mm (8.3 inches)
Wheelbase1,535 mm (60.4 inches)
Dry Weight251.0 kg (553.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-R19
Rear Tire/Tyre180/55-R17
Front BrakesDouble disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi Stelvio 1200 4V ABS. This Enduro / offroad model is powered by a 90° V-twin. V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 105.00 HP (76.6 kW) horsepower and 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Stelvio 1200 4V ABS is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/90-R19 and the rear is 180/55-R17 . The entire package is supported by the frame, Tubular in high-strength steel with integrated engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons. front brakes and Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons. rear brakes. The Moto Guzzi Stelvio 1200 4V ABS was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
