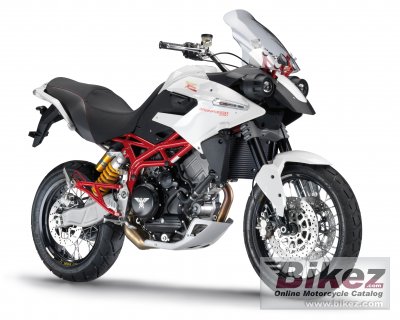

2011 Moto Morini Granpasso 1200 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Moto Morini Granpasso 1200.

Basic Specs

Year2011
MakeMoto Morini
ModelMoto Morini Granpasso 1200
Cost Euro 12790. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1187.00 ccm (72.43 cubic inches)
Type87 degree V-twin
DetailsV2, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke107.0 x 66.0 mm (4.2 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. Magneti Marelli
IgnitionI.A.W. electronics
ExhaustSport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor.
LubricationForced by oil pump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower118.00 HP (86.1 kW)
Torque103.60 Nm (10.6 kgf-m or 76.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity27.00 litres (7.13 gallons)
Emissions

Chassis

Frame TypeHigh-strength steel tube trellis frame
Rake26.5°
Trail135 mm (5.3 inches)
Front SuspensionMarzocchi upside down fork
Front Travel175 mm (6.9 inches)
Rear SuspensionOhlins single shock absorber
Rear Travel200 mm (7.9 inches)
Seat
Seat Height875 mm (34.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,170 mm (85.4 inches)
Total Width850 mm (33.5 inches)
Ground Clearance200 mm (7.9 inches)
Wheelbase1,505 mm (59.3 inches)
Dry Weight210.0 kg (463.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/80-R19
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. Floating disc, 2-piston
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter255 mm (10.0 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Morini Granpasso 1200. This Allround model is powered by a 87 degree V-twin V2, four-stroke engine with 1187.00 ccm (72.43 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Injection. Magneti Marelli allowing this machine to produce its 118.00 HP (86.1 kW) horsepower and 103.60 Nm (10.6 kgf-m or 76.4 ft.lbs) torque. According to our records engine heat of the Moto Morini Granpasso 1200 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-R19 and the rear is 150/70-R17 . The entire package is supported by the frame, High-strength steel tube trellis frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating disc, 2-piston front brakes and Single disc rear brakes. The Moto Morini Granpasso 1200 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made in Italy.
