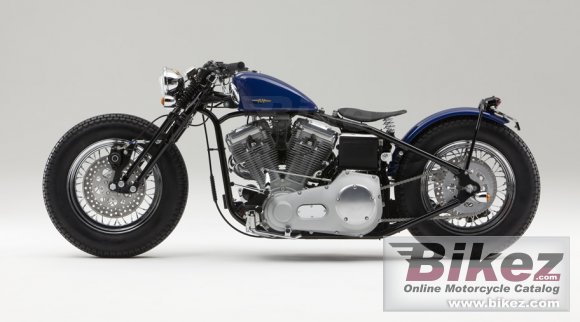

These are the known mechanical and performance specifications for your 2011 Road Hopper Type 5i Evo.
Basic Specs
Engine
Displacement1337.00 ccm (81.58 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke88.0 x 108.0 mm (3.5 x 4.3 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
Cooling
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet multiplate coil spring
DrivelineChain drive 530-102L
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame TypeZERO Original Design
Rake33.2°
Trail
Front Suspension74 Springer
Front Travel
Rear Suspension
Rear Travel
SeatSingle person seat
Seat Height660 mm (26.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,300 mm (90.6 inches)
Total Width720 mm (28.3 inches)
Ground Clearance100 mm (3.9 inches)
Wheelbase1,600 mm (63.0 inches)
Dry Weight230.0 kg (507.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre5.00-16
Rear Tire/Tyre5.00-16
Front BrakesSingle disc. HD 1-Piston
Front Brake Diameter
Rear BrakesSingle disc. Wilwood 2-P
Rear Brake Diameter
Wheels
Comments
Made in Japan by by Zero Engineering. See also Samurai Choppers. Model ID: DRA. A variant called 5i EVO Open primary is available.
