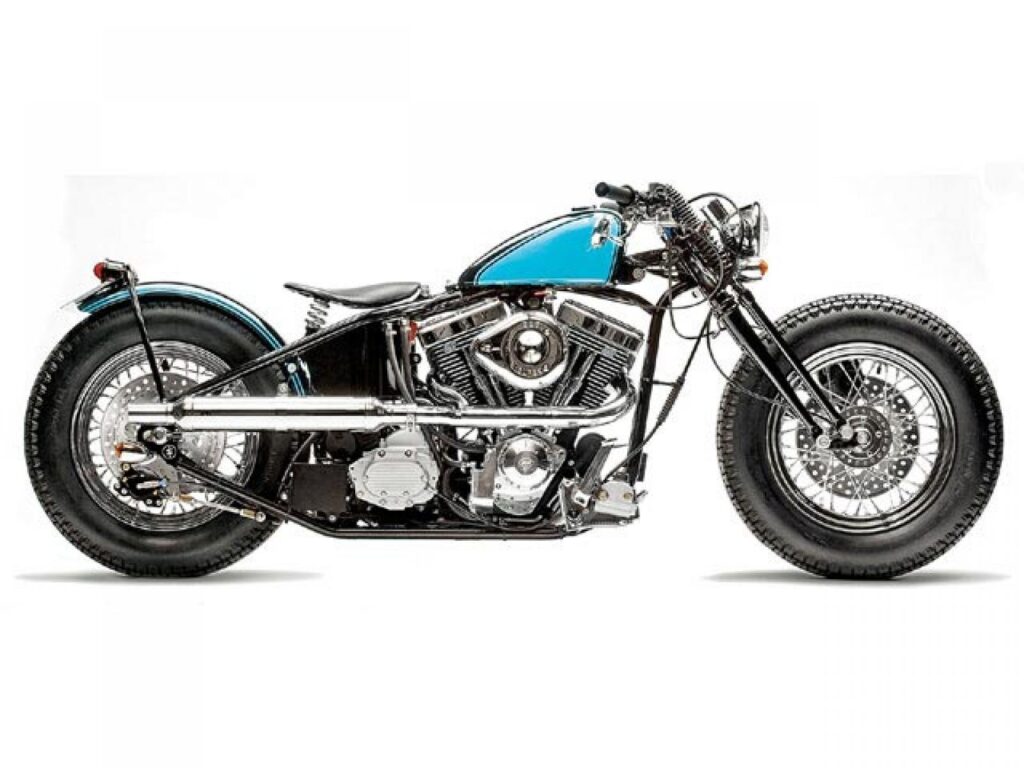

2011 Samurai Chopper Type 5 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Samurai Chopper Type 5.

Basic Specs

Year2011
MakeSamurai Chopper
ModelSamurai Chopper Type 5
CostUS$ 27200. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1337.00 ccm (81.58 cubic inches)
TypeEvo Style (S and S)
DetailsV2, four-stroke
Max RPM
Compression10.1:1
Bore/Stroke101.6 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
Fueling
IgnitionSemi-transistor
Exhaust2-into-1
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
DrivelineBelt primary drive, Chain final drive.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.00 litres (2.11 gallons)
Emissions

Chassis

Frame TypeRigid Goose Neck. Steel tubes.
Rake
Trail
Front Suspension74 Springer fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,300 mm (90.6 inches)
Total Width710 mm (28.0 inches)
Ground Clearance100 mm (3.9 inches)
Wheelbase1,600 mm (63.0 inches)
Dry Weight229.5 kg (506.0 pounds)
Wet Weight238.0 kg (524.7 pounds)

Wheels & Brakes

Front Tire/Tyre5.00-16
Rear Tire/Tyre5.00-16
Front BrakesSingle disc. HD 1-Piston
Front Brake Diameter
Rear BrakesSingle disc. Wilwood 2-P
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Samurai Chopper Type 5. This Custom / cruiser model is powered by a Evo Style (S and S) V2, four-stroke engine with 1337.00 ccm (81.58 cubic inches) of actual displacement before 10.1:1 compression. Fueling is metered via allowing this machine to produce its horsepower and torque. According to our records engine heat of the Samurai Chopper Type 5 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 5.00-16 and the rear is 5.00-16 . The entire package is supported by the frame, Rigid Goose Neck. Steel tubes.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. HD 1-Piston front brakes and Single disc. Wilwood 2-P rear brakes. The Samurai Chopper Type 5 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Made by Zero Engineering, Japan. Samurai Chopper where formerly named Road Hopper.
