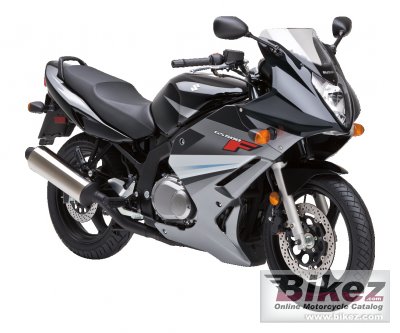

2011 Suzuki GS500F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Suzuki GS500F.

Basic Specs

Year2011
MakeSuzuki
ModelSuzuki GS500F
CostUS$ 4399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement487.00 ccm (29.72 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke74.0 x 56.6 mm (2.9 x 2.2 inches)
Valves/Cylinder
FuelingCarburettor. Twin 34mm Mikuni
IgnitionTransistorized
ExhaustTwin 34mm Mikuni
LubricationWet Sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineD.I.D. 520VM, 110 links

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions

Chassis

Frame Type
Rake23.9°
Trail97 mm (3.8 inches)
Front SuspensionTelescopic, coil spring, oil damped
Front Travel130 mm (5.1 inches)
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height650 mm (25.6 inches)
Total Length2,080 mm (81.9 inches)
Total Width800 mm (31.5 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,405 mm (55.3 inches)
Dry Weight
Wet Weight199.0 kg (438.7 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-M17
Rear Tire/Tyre130/70-M17
Front BrakesSingle disc. 4-piston
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki GS500F. This Naked bike model is powered by a In-line four, four-stroke engine with 487.00 ccm (29.72 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. Twin 34mm Mikuni allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki GS500F is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-M17 and the rear is 130/70-M17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston front brakes and Single disc rear brakes. The Suzuki GS500F was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
