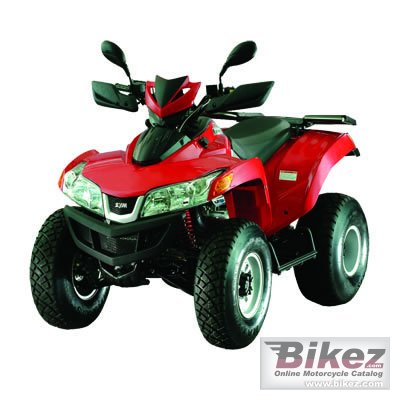

These are the known mechanical and performance specifications for your 2011 Sym Quad Lander 300.
Basic Specs
Engine
Displacement287.20 ccm (17.52 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveChain
Clutch
DrivelineAutomatic CVT with reverse. Chain/shaft final drive.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIdependent, Single A-arm
Front Travel
Rear SuspensionUnit Swing Arm
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length1,910 mm (75.2 inches)
Total Width1,060 mm (41.7 inches)
Ground Clearance
Wheelbase1,200 mm (47.2 inches)
Dry Weight243.0 kg (535.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre21/7-10
Rear Tire/Tyre22/10-10
Front BrakesDouble disc. Hydraulic
Front Brake Diameter175 mm (6.9 inches)
Rear BrakesSingle disc. With parking
Rear Brake Diameter190 mm (7.5 inches)
Wheels
Comments
ATV made in Taiwan. Model versions called SYM Quad Lander 300 US and SYM Quad Lander 300 EU.
