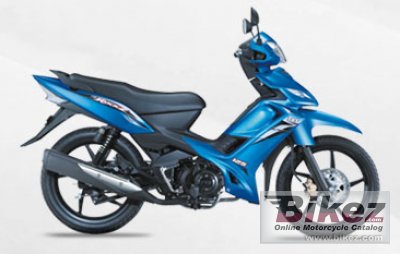

These are the known mechanical and performance specifications for your 2011 TVS Rockz.
Basic Specs
Engine
Displacement124.50 ccm (7.60 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDigital cdi
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox4-speed
Final DriveBelt
ClutchCentrifugal clutch - auto, auto with manual override Manual override(CW) centrifugal clutch - auto(SW)
Driveline
Performance
Horespower9.80 HP (7.2 kW)
Torque9.80 Nm (1.0 kgf-m or 7.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity4.00 litres (1.06 gallons)
Emissions
Chassis
Frame TypeUnderbone type
Rake
Trail
Front SuspensionTelescopic spring fork
Front Travel
Rear SuspensionSwing arm with triple rated, 3 step adjustable, mono tube gas filled canister absorbers(CW)
Rear Travel
Seat
Seat Height767 mm (30.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,078 mm (42.4 inches)
Total Length1,940 mm (76.4 inches)
Total Width665 mm (26.2 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,260 mm (49.6 inches)
Dry Weight
Wet Weight95.0 kg (209.4 pounds)
Wheels & Brakes
Front Tire/Tyre2.50-17
Rear Tire/Tyre2.75-17
Front BrakesExpanding brake (drum brake). Optional disk
Front Brake Diameter110 mm (4.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels
Comments
Sccoter made in India.
