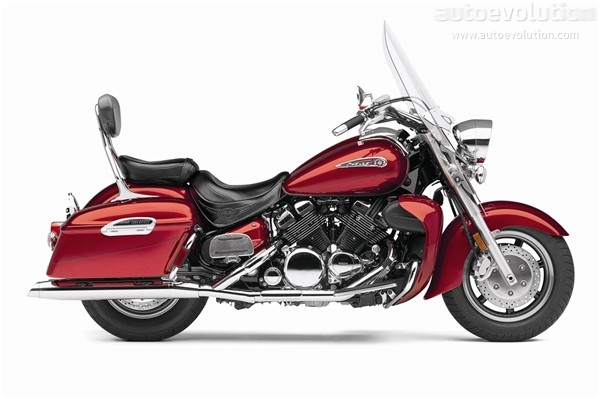

2011 Yamaha Royal Star Tour Deluxe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Yamaha Royal Star Tour Deluxe.

Basic Specs

Year2011
MakeYamaha
ModelYamaha Royal Star Tour Deluxe
CostUS$ 15690. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1294.66 ccm (79.00 cubic inches)
TypeSingle-axis internal counterbalancer reduces engine vibration.
DetailsV4, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke79.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder4
FuelingCarburettor. (4) 32mm Mikuni CV
IgnitionTCI: Transistor Controlled Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchHydralic clutch
Driveline

Performance

Horespower97.00 HP (70.8 kW)
Torque120.68 Nm (12.3 kgf-m or 89.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity20.06 litres (5.30 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSingle-backbone frame with solid engine mounting
Rake
Trail
Front SuspensionTelescopic fork
Front Travel140 mm (5.5 inches)
Rear SuspensionSingle shock
Rear Travel104 mm (4.1 inches)
SeatErgonomically designed bucket-type seats with plush, wraparound passenger backrest
Seat Height739 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,524 mm (60.0 inches)
Total Length2,504 mm (98.6 inches)
Total Width1,011 mm (39.8 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,715 mm (67.5 inches)
Dry Weight
Wet Weight382.8 kg (844.0 pounds)

Wheels & Brakes

Front Tire/Tyre150/80-16
Rear Tire/Tyre150/90-15
Front BrakesDouble disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter320 mm (12.6 inches)
Wheels7-spoke cast

Comments

It appears you're interested in specifications for the Yamaha Royal Star Tour Deluxe. This Touring model is powered by a Single-axis internal counterbalancer reduces engine vibration. V4, four-stroke engine with 1294.66 ccm (79.00 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Carburettor. (4) 32mm Mikuni CV allowing this machine to produce its 97.00 HP (70.8 kW) horsepower and 120.68 Nm (12.3 kgf-m or 89.0 ft.lbs) torque. According to our records engine heat of the Yamaha Royal Star Tour Deluxe is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 150/80-16 and the rear is 150/90-15 . The entire package is supported by the frame, Single-backbone frame with solid engine mounting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Yamaha Royal Star Tour Deluxe was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
