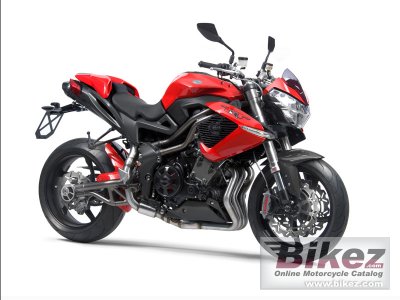

2012 Benelli TNT 1130 R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Benelli TNT 1130 R.

Basic Specs

Year2012
MakeBenelli
ModelBenelli TNT 1130 R
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
TypeDouble overhead camshaft with balancer shaft
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Electronic injection with three throttle bodies ø53 mm
IgnitionWalbro ECUA-1
ExhaustWith catalytic converter and oxigen sensor
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchDry clutch with hydraulic command with slipper device
Driveline44/79 primary drive

Performance

Horespower157.80 HP (115.2 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeDecomposable, front steel trestle, rear aluminium alloy casting
Rake25.0°
Trail95 mm (3.7 inches)
Front Suspension50 mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments
Front Travel120 mm (4.7 inches)
Rear SuspensionSteel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link
Rear Travel120 mm (4.7 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,050 mm (41.3 inches)
Total Length2,100 mm (82.7 inches)
Total Width790 mm (31.1 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,443 mm (56.8 inches)
Dry Weight208.0 kg (458.6 pounds)
Wet Weight218.0 kg (480.6 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Floating Wave disk mm with radial monoblock 4 pistons calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Wave disk with double piston caliper
Rear Brake Diameter240 mm (9.4 inches)
WheelsAluminium alloy

Comments

It appears you're interested in specifications for the Benelli TNT 1130 R. This Naked bike model is powered by a Double overhead camshaft with balancer shaft In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Electronic injection with three throttle bodies ø53 mm allowing this machine to produce its 157.80 HP (115.2 kW) horsepower and 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) torque. According to our records engine heat of the Benelli TNT 1130 R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Decomposable, front steel trestle, rear aluminium alloy casting. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating Wave disk mm with radial monoblock 4 pistons calipers front brakes and Single disc. Wave disk with double piston caliper rear brakes. The Benelli TNT 1130 R was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
