2012 BMW K 1300 R Dynamic Specs

motorcycle specs

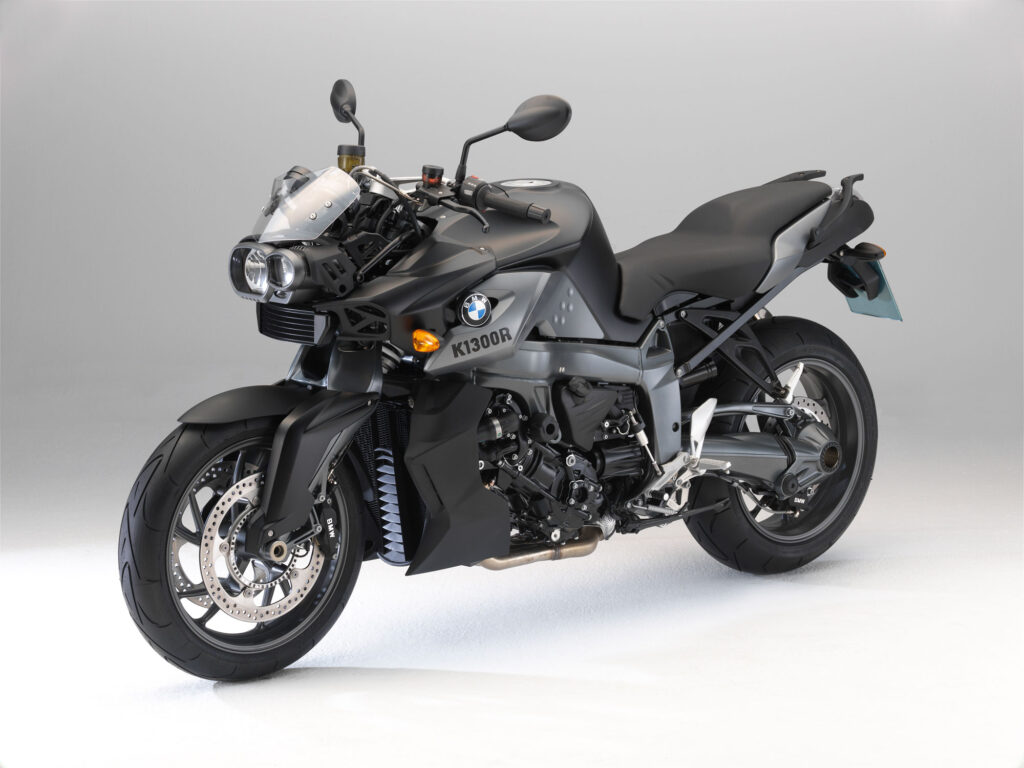

These are the known mechanical and performance specifications for your 2012 BMW K 1300 R Dynamic.

Basic Specs

Year2012
MakeBMW
ModelBMW K 1300 R Dynamic
Cost

Engine

Displacement1293.00 ccm (78.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke80.0 x 64.3 mm (3.1 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Ignition
ExhaustStainless steel exhaust system
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchMultiple-disc clutch in oil bath, hydraulically operated
Driveline

Performance

Horespower170.31 HP (124.3 kW)
Torque140.00 Nm (14.3 kgf-m or 103.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity19.00 litres (5.02 gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridge-type, cast aluminium, load bearing engine
Rake29.6°
Trail104 mm (4.1 inches)
Front SuspensionBMW Motorrad Duolever
Front Travel115 mm (4.5 inches)
Rear SuspensionCast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
SeatOne piece dual seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height790 mm (31.1 inches) If adjustable, highest setting.
Total Height1,095 mm (43.1 inches)
Total Length2,228 mm (87.7 inches)
Total Width856 mm (33.7 inches)
Ground Clearance
Wheelbase1,585 mm (62.4 inches)
Dry Weight217.0 kg (478.4 pounds)
Wet Weight243.0 kg (535.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Optional ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Optional ABS
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW K 1300 R Dynamic. This Naked bike model is powered by a In-line four, four-stroke engine with 1293.00 ccm (78.90 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K) allowing this machine to produce its 170.31 HP (124.3 kW) horsepower and 140.00 Nm (14.3 kgf-m or 103.3 ft.lbs) torque. According to our records engine heat of the BMW K 1300 R Dynamic is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Bridge-type, cast aluminium, load bearing engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS front brakes and Single disc. Optional ABS rear brakes. The BMW K 1300 R Dynamic was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

On Board Computer, Heated Grips, Sport Windshield, LED Indicators, Gear Shift Assist, ESA 2 (Electronic Suspension Adjustment 2). One key system for ignition, steering, fuel filler cap and seat lock.
