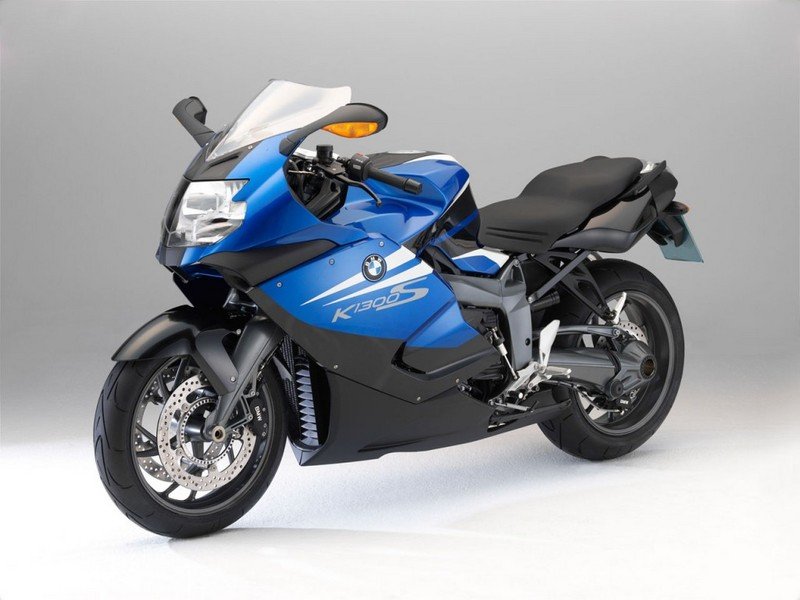

2012 BMW K 1300 S Sport Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 BMW K 1300 S Sport.

Basic Specs

Year2012
MakeBMW
ModelBMW K 1300 S Sport
TypeSport
Cost

Engine

Displacement1293.00 ccm (78.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke80.0 x 64.3 mm (3.1 x 2.5 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchMultiple-disc clutch in oil bath, hydraulically operated
Driveline

Performance

Horespower172.99 HP (126.3 kW)
Torque140.00 Nm (14.3 kgf-m or 103.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Capacity19.00 litres (5.02 gallons)
Emissions109.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridge-type frame, cast aluminium, load-bearing engine
Rake29.6°
Trail104 mm (4.1 inches)
Front SuspensionBMW Motorrad Duolever
Front Travel115 mm (4.5 inches)
Rear SuspensionCast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height790 mm (31.1 inches) If adjustable, highest setting.
Total Height1,221 mm (48.1 inches)
Total Length2,182 mm (85.9 inches)
Total Width905 mm (35.6 inches)
Ground Clearance
Wheelbase1,585 mm (62.4 inches)
Dry Weight228.0 kg (502.7 pounds)
Wet Weight254.0 kg (560.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Integral ABS. Can be switched off.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Integral ABS. Can be switched off.
Rear Brake Diameter265 mm (10.4 inches)
WheelsCast aluminium

Comments

It appears you're interested in specifications for the BMW K 1300 S Sport. This Sport model is powered by a In-line four, four-stroke engine with 1293.00 ccm (78.90 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 172.99 HP (126.3 kW) horsepower and 140.00 Nm (14.3 kgf-m or 103.3 ft.lbs) torque. According to our records engine heat of the BMW K 1300 S Sport is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Bridge-type frame, cast aluminium, load-bearing engine. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Integral ABS. Can be switched off. front brakes and Single disc. Integral ABS. Can be switched off. rear brakes. The BMW K 1300 S Sport was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
