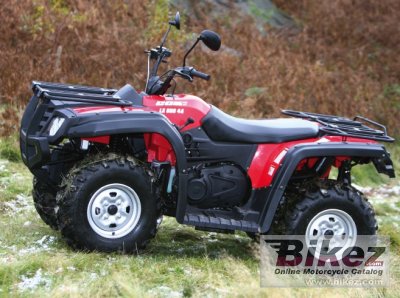

2012 CCM LX500 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 CCM LX500.

Basic Specs

Year2012
MakeCCM
ModelCCM LX500
TypeATV
Cost
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement471.00 ccm (28.74 cubic inches)
TypeForward inclined, single cylinder
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke84.5 x 84.0 mm (3.3 x 3.3 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDC. C.D.I
Exhaust
LubricationWet sump
CoolingLiquid
Spark Plugs

Drivetrain

GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
DrivelineAutomatic F-R-N
Shaft drive (cardan) Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake
Trail
Front SuspensionDouble wishbone
Front Travel170 mm (6.7 inches)
Rear SuspensionDouble wishbone
Rear Travel225 mm (8.9 inches)
Seat
Seat Height880 mm (34.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,250 mm (88.6 inches)
Total Width500 mm (19.7 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,260 mm (49.6 inches)
Dry Weight267.0 kg (588.6 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the CCM LX500. This ATV model is powered by a Forward inclined, single cylinder Single cylinder, four-stroke engine with 471.00 ccm (28.74 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the CCM LX500 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The CCM LX500 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

CCM is a British brand.
