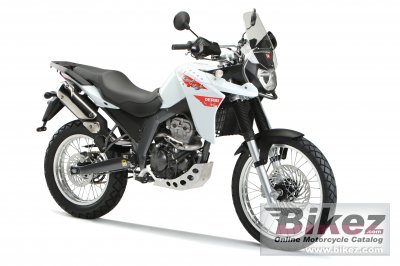

These are the known mechanical and performance specifications for your 2012 Derbi Terra Adventure 125.
Basic Specs
Year2012
MakeDerbi
ModelDerbi Terra Adventure 125
TypeEnduro / offroad
Cost Euro 4080. Prices depend on country, taxes, accessories, etc.
Engine
Displacement124.20 ccm (7.58 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke58.0 x 47.0 mm (2.3 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor. 30 mm
IgnitionElectronic CDI
Exhaust
LubricationDry sump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions
Chassis
Frame TypeSteel perimetral double beam. Double steel swing arm.
Rake
Trail
Front Suspension41 mm hydraulic fork
Front Travel175 mm (6.9 inches)
Rear SuspensionMono-shock with adjustable spring pre-load.
Rear Travel170 mm (6.7 inches)
SeatDual
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,451 mm (57.1 inches)
Total Length2,192 mm (86.3 inches)
Total Width815 mm (32.1 inches)
Ground Clearance
Wheelbase1,451 mm (57.1 inches)
Dry Weight117.0 kg (257.9 pounds)
Wet Weight130.0 kg (286.6 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
Made in Spain.
