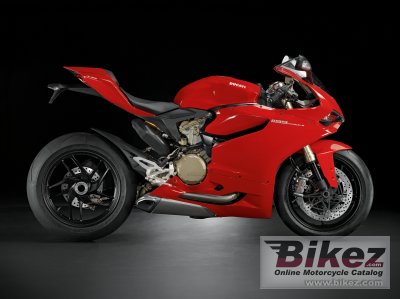

2012 Ducati 1199 Panigale Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Ducati 1199 Panigale.

Basic Specs

Year2012
MakeDucati
ModelDucati 1199 Panigale
TypeSport
Cost

Engine

Displacement849.40 ccm (51.83 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke112.0 x 112.0 mm (4.4 x 4.4 inches)
Valves/Cylinder4
FuelingInjection. Marelli electronic fuel injection, elliptical throttle bodies
Ignition
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Driveline

Performance

Horespower195.00 HP (142.3 kW)
Torque133.02 Nm (13.6 kgf-m or 98.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeMonocoque aluminum
Rake24.5°
Trail
Front SuspensionMarzocchi 50mm pressurized and fully adjustable usd fork with hard anodized aluminum lightweight slider
Front Travel
Rear SuspensionFully adjustable Sachs unit.
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,430 mm (56.3 inches)
Dry Weight164.0 kg (361.6 pounds)
Wet Weight188.0 kg (414.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers ABS optional +2.5kg (+5.5lb)
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. 2-piston calliper
Rear Brake Diameter245 mm (9.6 inches)
Wheels10-spoke light alloy

Comments

It appears you're interested in specifications for the Ducati 1199 Panigale. This Sport model is powered by a V2, four-stroke engine with 849.40 ccm (51.83 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Marelli electronic fuel injection, elliptical throttle bodies allowing this machine to produce its 195.00 HP (142.3 kW) horsepower and 133.02 Nm (13.6 kgf-m or 98.1 ft.lbs) torque. According to our records engine heat of the Ducati 1199 Panigale is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, Monocoque aluminum. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers ABS optional +2.5kg (+5.5lb) front brakes and Single disc. 2-piston calliper rear brakes. The Ducati 1199 Panigale was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
